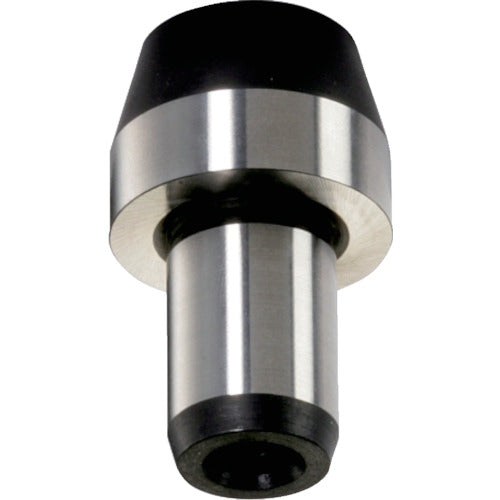

Positioning pin 22630.0232 HALDER
Positioning pin 22630.0232 HALDER
  • Load image into Gallery viewer, Positioning pin 22630.0232 HALDER
  • Load image into Gallery viewer, Positioning pin 22630.0232 HALDER

Positioning pin 22630.0232 HALDER

【order ID】1068277
【basic item number】22630.0232 6343
【brand name】HALDER
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】
【Country of origin】0
【Weight】59.0G
【Features】
Used as a reference pin for positioning the workpiece.
Comes with a through hole for fixing.

【Use】
Cylindrical pins are used for positioning together with tolerance holes.
Also suitable for stoppers and feet.

【Specification】
Outer diameter d1 (mm): 25
Pedestal height l1 (mm): 15
Pin diameter d2 (mm): 12
Pin length l2 (mm): 18

【Specification2】
Cylindrical shape with through hole for fixing

【Material/Finish】
Hardened steel, carburized and quenched, black stained, polished

【Set contents/accessories】
－

【caution】
－
¥4,763
¥4,763
Sold out
