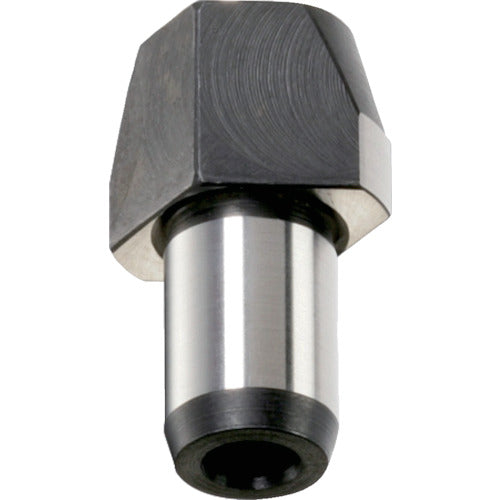

Positioning pin 22630.0240 HALDER
Positioning pin 22630.0240 HALDER
  • Load image into Gallery viewer, Positioning pin 22630.0240 HALDER
  • Load image into Gallery viewer, Positioning pin 22630.0240 HALDER

Positioning pin 22630.0240 HALDER

【order ID】1061869
【basic item number】22630.0240 6343
【brand name】HALDER
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】
【Country of origin】0
【Weight】1.0G
【Features】
Used as a diapin for positioning the workpiece.
Comes with a through hole for fixing.

【Use】
For correcting hole spacing tolerances and determining the fixing direction of the workpiece.

【Specification】
Outer diameter d1 (mm): 6
Pedestal height l1 (mm): 7
Pin diameter d2 (mm): 4
Pin length l2 (mm): 6

【Specification2】
－

【Material/Finish】
Hardened steel, carburized and quenched, black stained, polished

【Set contents/accessories】
－

【caution】
－
¥3,434
