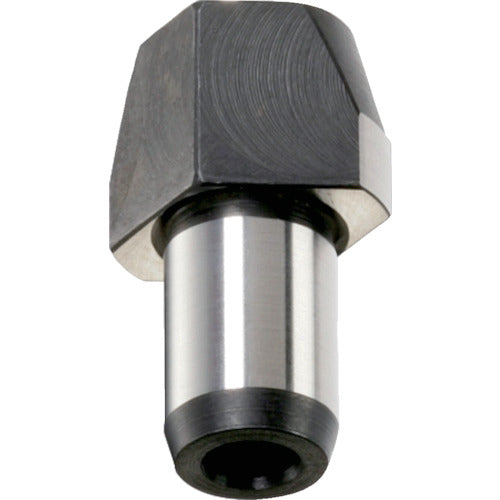

Positioning pin 22630.0243 HALDER
Positioning pin 22630.0243 HALDER
  • Load image into Gallery viewer, Positioning pin 22630.0243 HALDER
  • Load image into Gallery viewer, Positioning pin 22630.0243 HALDER

Positioning pin 22630.0243 HALDER

【order ID】1066656
【basic item number】22630.0243 6343
【brand name】HALDER
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】
【Country of origin】0
【Weight】4.4G
【Features】
Used as a diamond pin for positioning the workpiece.
Comes with a through hole for fixing.

【Use】
Cylindrical pins are used for positioning together with tolerance holes.
Also suitable for stoppers and feet.
Chamfered diamond pins are used to correct hole spacing tolerances and determine the fixing direction of the workpiece.


【Specification】- Outer diameter d1 (mm): 8 - Pedestal height l1 (mm): 16 - Pin diameter d2 (mm): 6 - Pin length l2 (mm): 9

【Specification2】
With through hole for fixing/Dia pin With through hole for fixing

【Material/Finish】
Hardened steel, carburized and quenched, black stained, polished

【Set contents/accessories】
－

【caution】
－
¥4,115
¥4,115
Sold out
