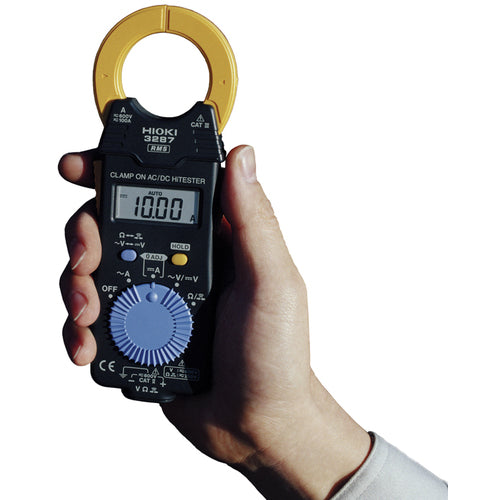

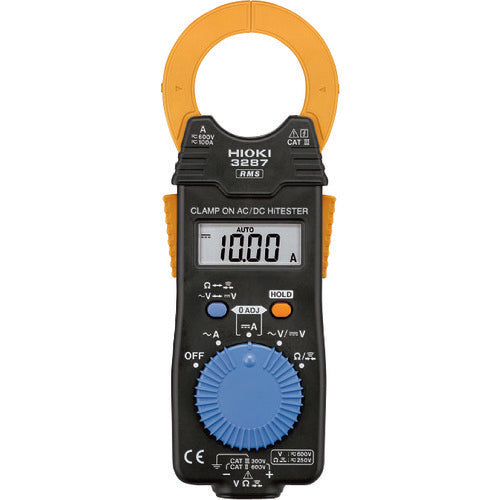

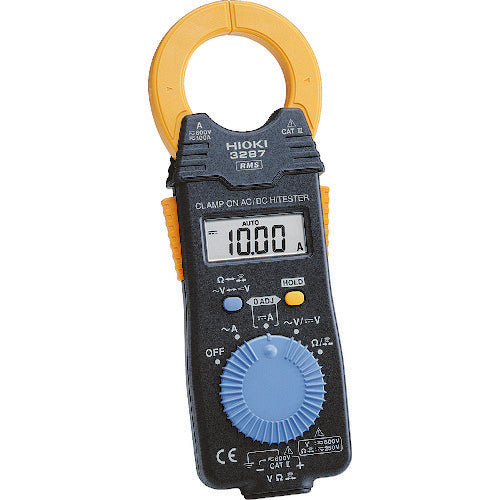

Clamp On AC/DC Hitester 3287 HIOKI

【Features】
Lightweight, compact AC/DC clamp meter.
It is an average value rectification type with an indicated value close to the fundamental wave component.
Suitable for measuring large currents such as UPS emergency batteries and train motors.
Although it is small, it is equipped with voltage, resistance, and continuity check functions.

【Use】
For general electrical work.
For checking load current such as breaker capacity.
For indoor electrical work and construction/maintenance of electrical equipment.

【Specification】
DC current (A): 100
AC current (A): 100
DC voltage (V): 600
AC voltage (V): 600
Resistance (Ω): 41.99M
Detection method: True RMS rectification ( RMS)
Power supply (V): Coin-type lithium battery (CR2032) x 1 (included)
Width (mm): 57
Depth (mm): 16
Height (mm): 180
Power supply: Coin-type lithium battery (CR2032) x 1 (included)
Maximum measurement conductor diameter (mm): 35
Maximum display (count): 4200

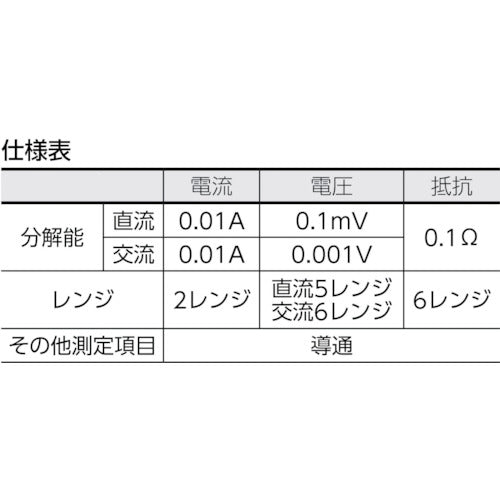

【Specification2】
Detection method: True RMS rectification (RMS)
Compliant standards: EN61010 (safety), EN61326 (EMC), current measurement category: CAT3 600V, voltage measurement category: CAT3 300V, CAT2 600V
Alternating current (A): 10.00 /100.0
DC current (A): 10.00/100.0
AC voltage (V): 4.200/42.00/420.0/600
DC voltage (V): 420.0m/4.200/42.00/420.0/600
Resistance (Ω): 420.0 /4.200k/42.00/420.0k/4.200M/42.00M
Measurement function: Continuity
Function: Auto range, numerical hold, auto power save (APS), over input warning (OF), zero adjustment

【Material/Finish】
－

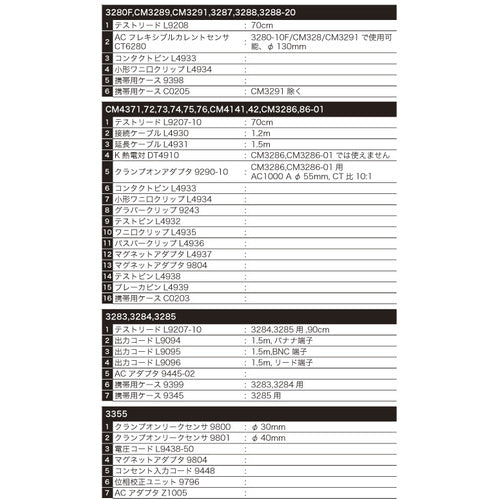

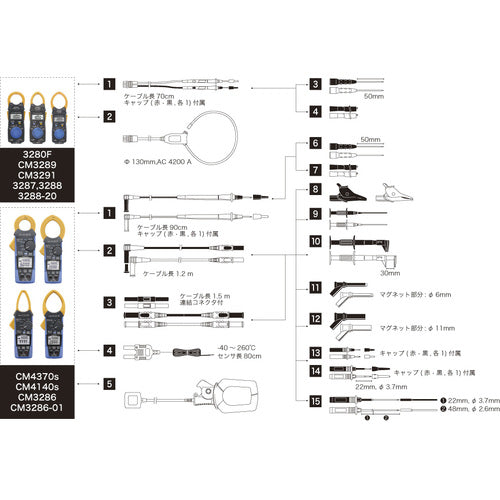

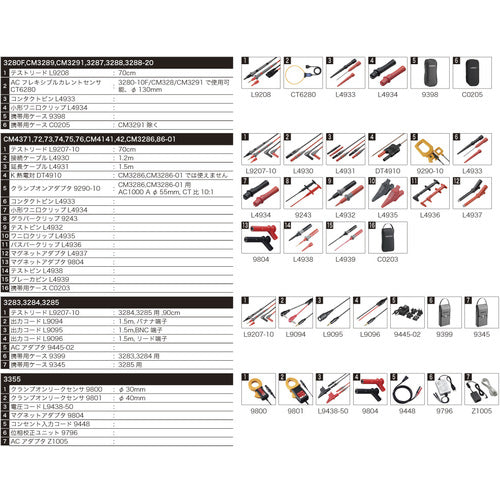

【Set contents/accessories】
Test lead (L9208) x 1

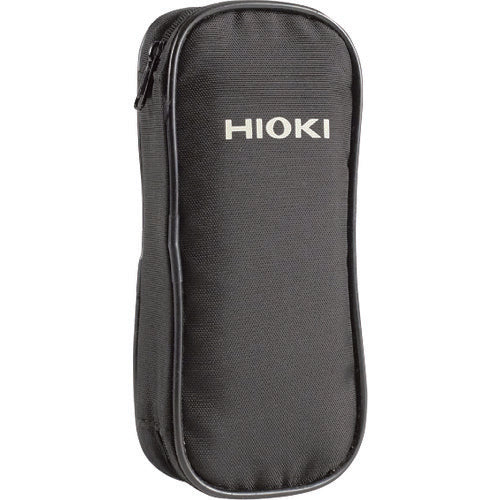

Portable case (9398) x 1
Coin type lithium battery (CR2032) (for built-in monitor)
Instruction manual x 1

【caution】
－
