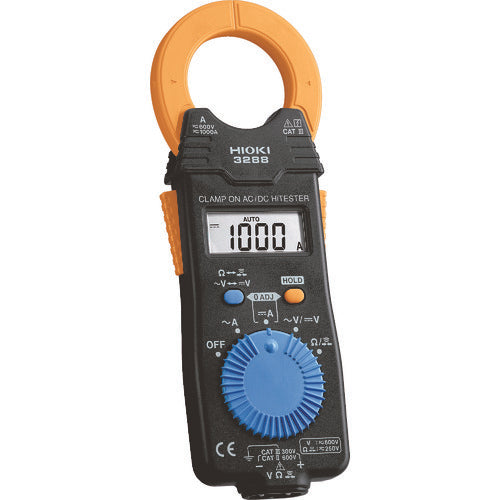

Clamp On AC/DC Hitester 3288 HIOKI

【Features】
Lightweight, compact AC/DC clamp meter.
True effective value type that indicates even harmonic components.

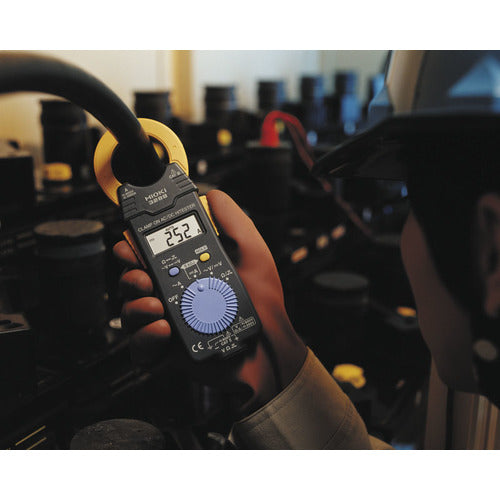

Suitable for measuring large currents such as UPS emergency batteries and train motors.
Although it is small, it is equipped with voltage, resistance, and continuity check functions.

【Use】
For general electrical work.
For checking load current such as breaker capacity.
For indoor electrical work and construction/maintenance of electrical equipment.

【Specification】
DC current (A): 1000
AC current (A): 1000
DC voltage (V): 600
AC voltage (V): 600
Resistance (Ω): 42M
Detection method: Average value rectification (MEAN)
Power supply (V): Coin-type lithium battery (CR2032) x 1 (included)
Width (mm): 57
Depth (mm): 16
Height (mm): 180
Power supply: Coin-type lithium battery (CR2032) ×1 piece (included)
Maximum display (count): 4200
Maximum measurement conductor diameter (mm): 35

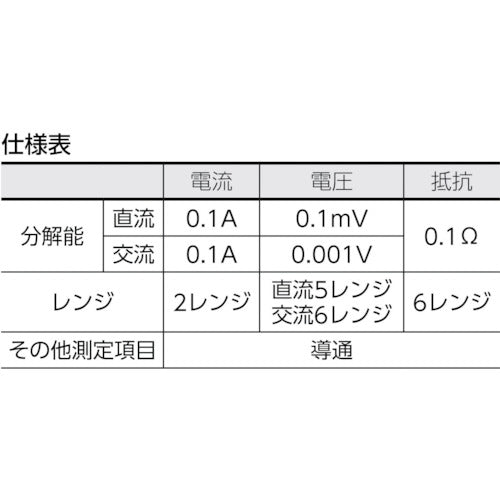

【Specification2】
Detection method: Average value rectification (MEAN)
Compliant standards: EN61010 (safety), EN61326 (EMC), Current measurement category: CAT3 600V, Voltage measurement category: CAT3 300V, CAT2 600V
Alternating current (A): 100.0/1000
DC current (A): 100.0/1000
AC voltage (V): 4.200/42.00/420.0/600
DC voltage (V): 420.0m/4.200/42.00/420.0/600
Resistance (Ω): 420.0/4.200 k/42.00/420.0k/4.200M/42.00M
Measurement function: Continuity
Function: Auto range, numerical hold, auto power save (APS), over input warning (OF), zero adjustment

【Material/Finish】
Case: PC/ABS

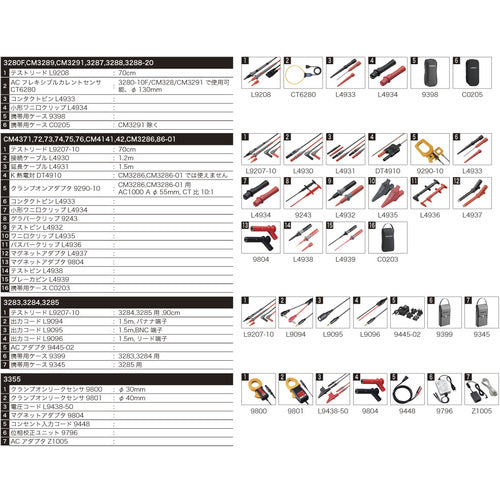

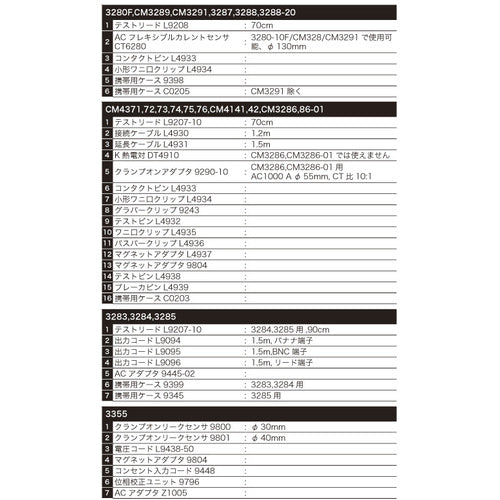

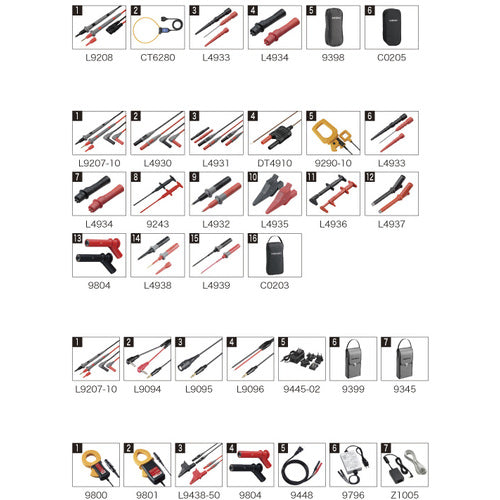

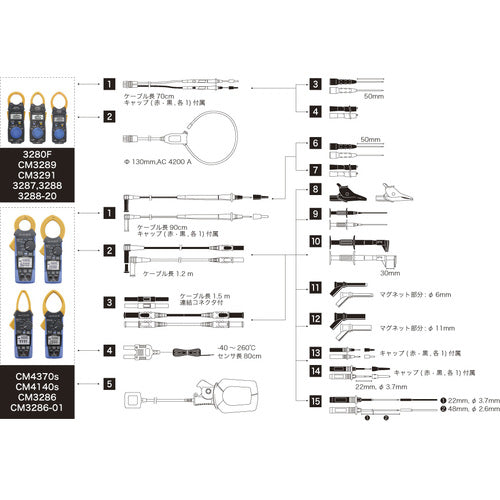

【Set contents/accessories】
Test lead (L9208) x 1

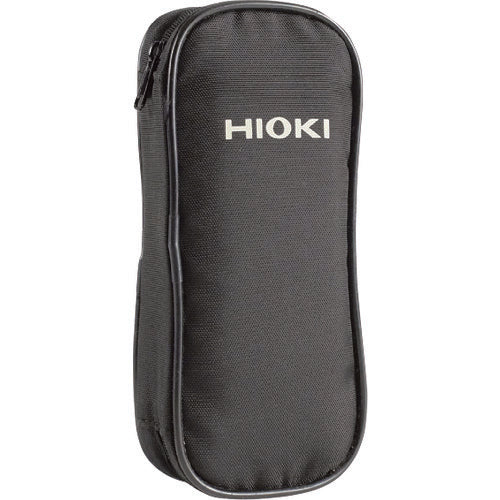

Portable case (9398) x 1
Coin type lithium battery (CR2032) (for built-in monitor)
Instruction manual x 1

【caution】
Never attempt to measure a measurement point that has a higher value than the category displayed on the measuring device. This may lead to serious accidents such as electric shock.
