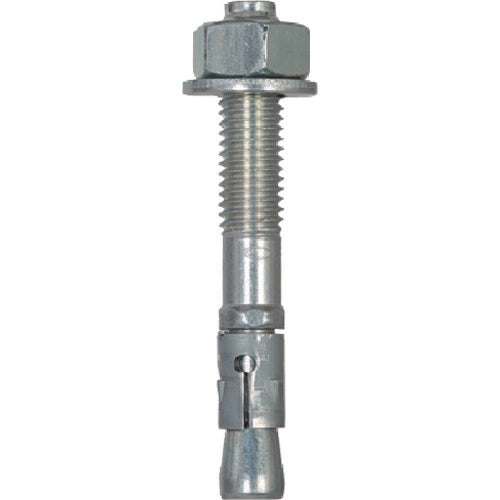

Bolt Anchor FBN2 40806 Fisher

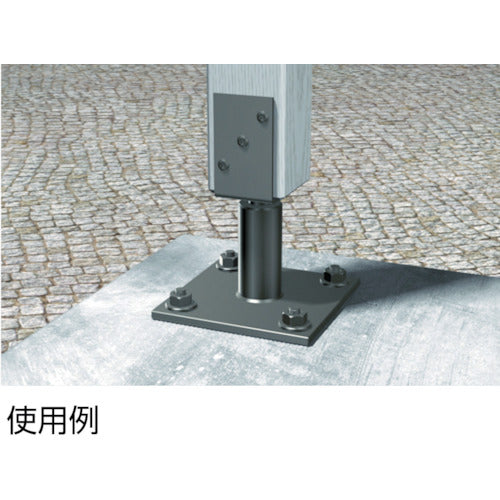

Wedge anchor for normal concrete with excellent cost performance.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M8Total Length (mm):56Screw Length (mm):24Max Attachment Thickness (mm):5Drill Diameter (mm):8Standard Construction Torque (N\m):15Maximum Tensile Load (kN):2.9Max shear load(kN):7.1Effective buried depth(mm):30European Technical Approval(ETA-07/0211)Packaged in a boxSteelSurface treatment: Zinc plated(trivalent chromate treatment)
