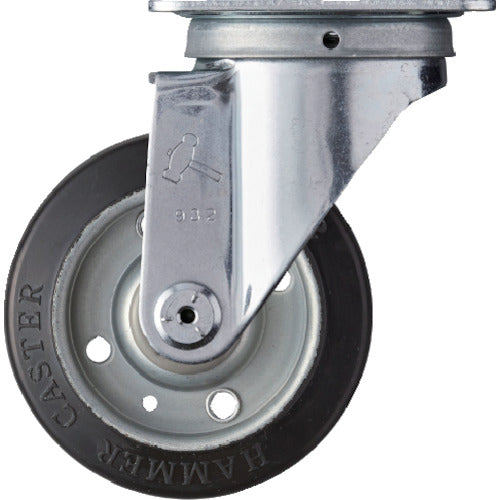

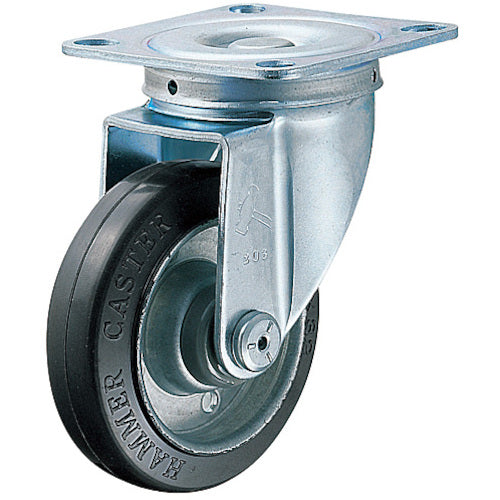

Topplate Rubber Caster 420S-R100 HAMMER CASTER

【Features】
A typical large caster with high load resistance and smooth turning.
It is a flat swivel type.
Plate type casters that are sturdy and stable.

【Use】
Factories, offices, etc.

【Specification】
Wheel diameter D (mm): 100
Type: Flexible
Allowable load (daN): 120
Allowable load (kgf): 122.4
Wheel width (mm): 32
Mounting height H (mm): 132
Mounting seat A (mm): 90
Mounting seat B (mm): 90
Mounting pitch X (mm): 68 to 71
Mounting pitch Y (mm): 68 to 71
Mounting hole diameter P (mm): 11
Eccentricity E (mm): 35 Turning radius (mm): 102

【Specification2】
Plate type
Wheel fixing method: Rivets
Wheel shape: Steel wheel, rubber-wrapped wheel (with resin bush)

【Material/Finish】
Metal fittings: Steel
Metal fittings surface treatment: Trivalent chromium chemical conversion treatment
Wheels: Rubber

【Set contents/accessories】
－

【caution】
－
