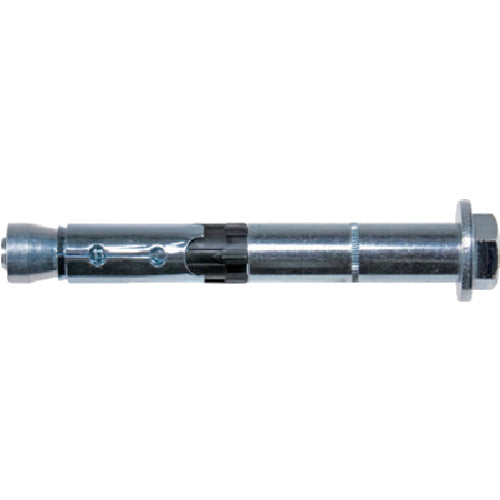

High Performance Anchor FH 2 44896 Fisher

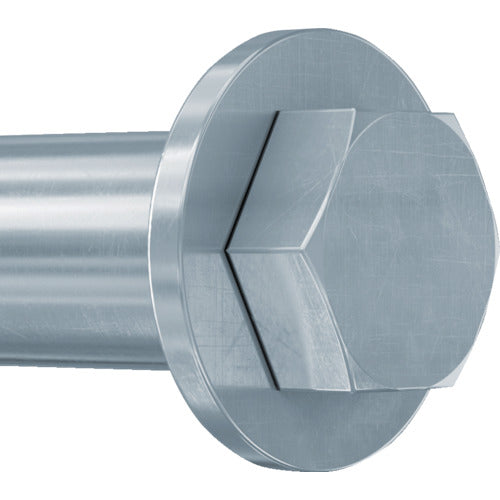

Interaction between the body part of the screw and the sleeve enables high shear load.Construction is possible with a few number of anchors.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M12Total Length (mm):157Width Across Flat (mm):19Max Attachment Thickness (mm):50Drill Diameter (mm):18Standard Construction Torque (N\m):80.0Maximum Tensile Load (kN):17.2Max shear load(kN):34.4Effective buried depth(mm):80European Technical Approval(ETA-07/0025)International Code Council CertificationHexagon head typePackaged in a boxSteelSurface treatment: Zinc plated(trivalent chromate treatment)
