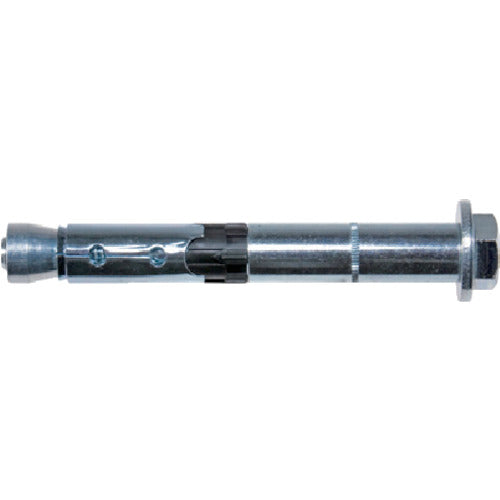

High Performance Anchor FH 2 44898 Fisher

Interaction between the body part of the screw and the sleeve enables high shear load.Construction is possible with a few number of anchors.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M16Total Length (mm):160Width Across Flat (mm):24Max Attachment Thickness (mm):25Drill Diameter (mm):24Standard Construction Torque (N\m):160.0Maximum Tensile Load (kN):24.0Max shear load(kN):48.1Effective buried depth(mm):100European Technical Approval(ETA-07/0025)International Code Council CertificationHexagon head typePackaged in a boxSteelSurface treatment: Zinc plated(trivalent chromate treatment)
