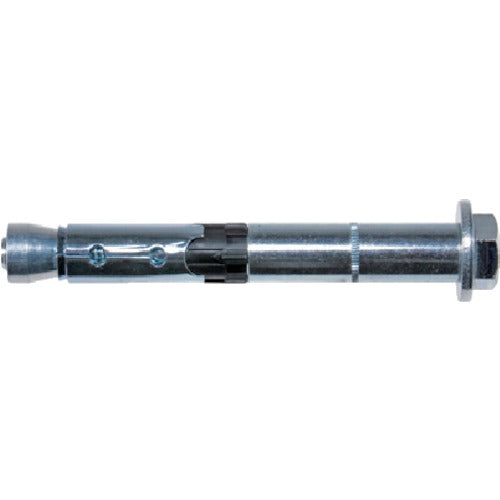

High Performance Anchor FH 2 44902 Fisher

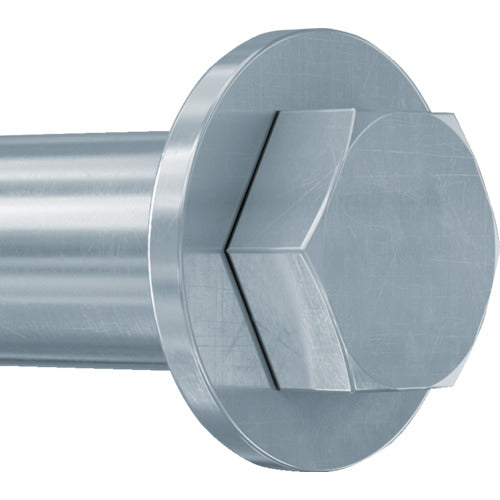

Interaction between the body part of the screw and the sleeve enables high shear load.Construction is possible with a few number of anchors.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M20Total Length (mm):222Width Across Flat (mm):30Max Attachment Thickness (mm):60Drill Diameter (mm):28Standard Construction Torque (N\m):180.0Maximum Tensile Load (kN):33.6Max shear load(kN):67.2Effective buried depth(mm):125European Technical Approval(ETA-07/0025)International Code Council CertificationHexagon head typePackaged in a boxSteelSurface treatment: Zinc plated(trivalent chromate treatment)
