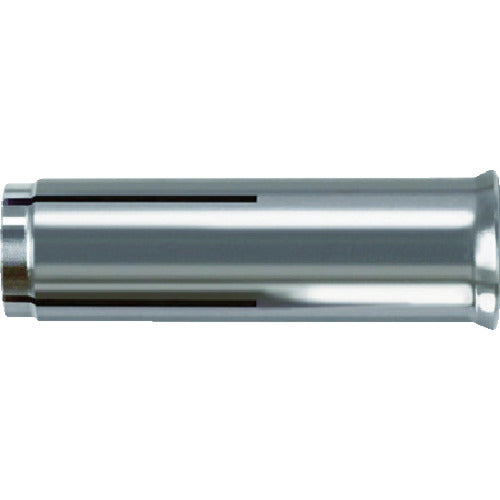

Hanmmerset Anchor 48415 Fisher

Internal cone hammer type internal thread anchor with a wide range of usage.For the combination of a hammer and a dedicated casting tool(EHS plus setting tool), a stamp is applied on the neck part of the main body after anchor casting and expansion, making it easy to check for the completion of construction.For concrete and stone.Nominal Designation of Thread:M12Total Length (mm):50Screw Length (mm):22Drill Diameter (mm):15Maximum Tensile Load (kN):8.5Packaged in a boxStainless Steel (SUS316)
