Small Head Concrete Vis 544-003 OHSATO

【Features】

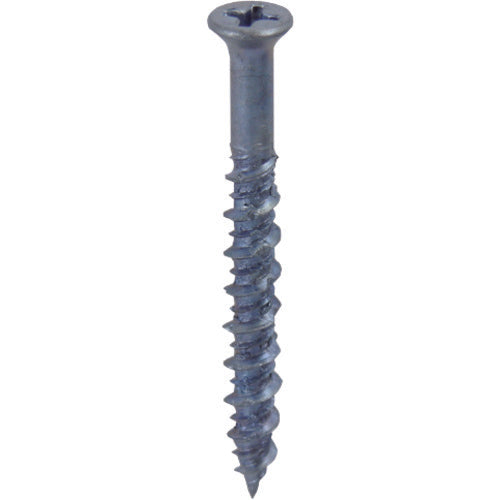

A 6mm diameter concrete screw with a small head.
Uses rust-resistant ionis coat to achieve overwhelming corrosion resistance.

【Use】
For fixing stair steps.
For fixing concrete and metal fittings.

【Specification】
Nominal diameter d (mm): 4
Prepared hole diameter (mm): 3.4
Embedding depth (mm): 30
Maximum tensile load (kN): 2.8
Drilling depth (mm): 48-Attachment thickness
Length (mm): 38
Compatible screwdriver: Phillips NO.2
Thickness: M4
Head diameter (mm): 6
Head height (mm): 2.5

【Specification2】
Highly corrosion-resistant plating ionis coat specification
Small head specification

【Material/Finish】
Iron
Surface treatment: Ionis coat

【Set contents/accessories】
－

【caution】
Please use by drilling a pilot hole in concrete.
