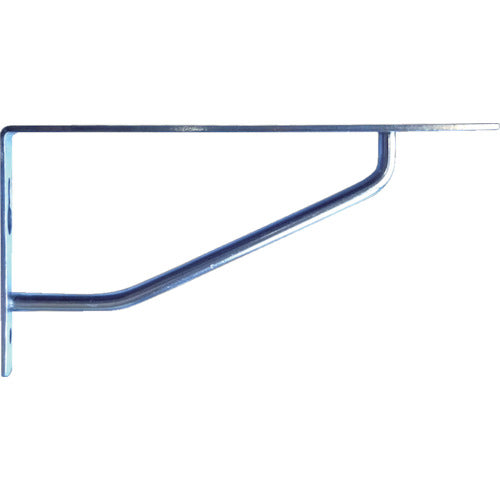

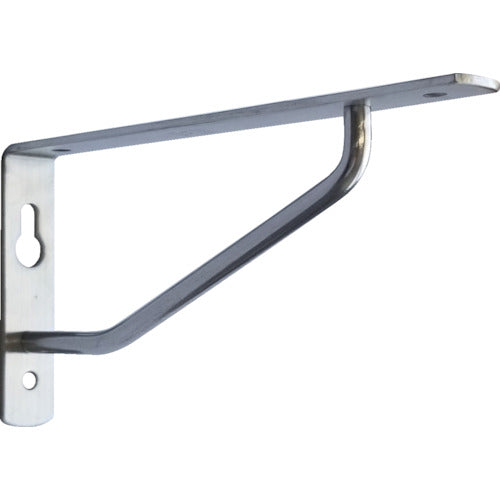

Stainless Arm Bracket AA-120 K.G.Y

【Features】- Made of rust-resistant stainless steel (SUS304), it retains its beautiful shine and impression, making it suitable for use in areas around water such as washrooms and bathrooms.

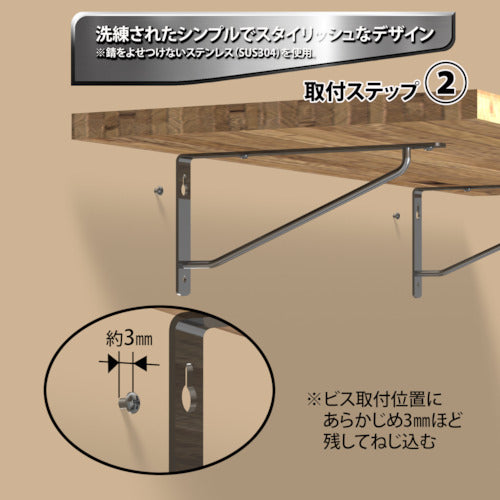

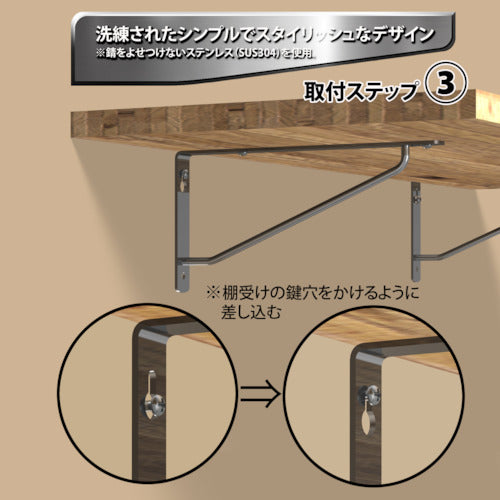

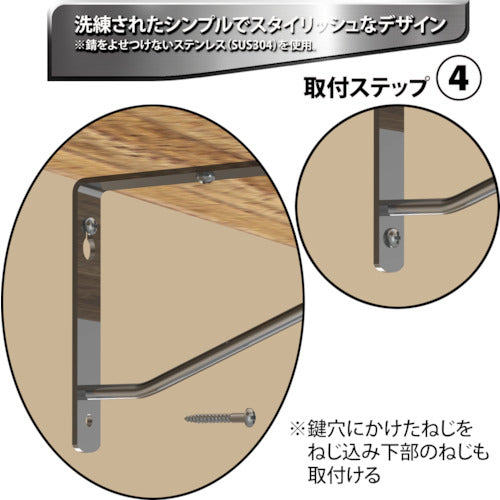

The use of "daruma hole" type screw holes makes it easy to install screws in places where it would be difficult to install, such as in narrow spaces or high places.

【Use】

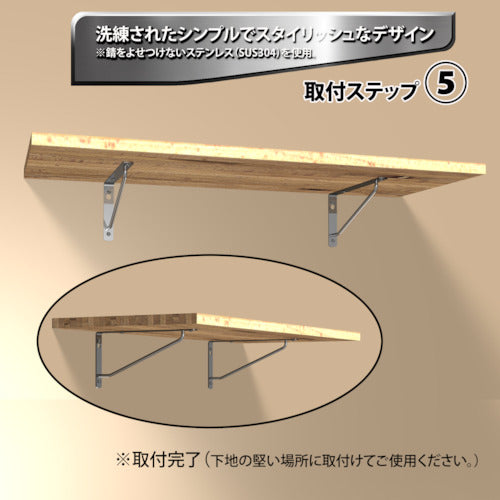

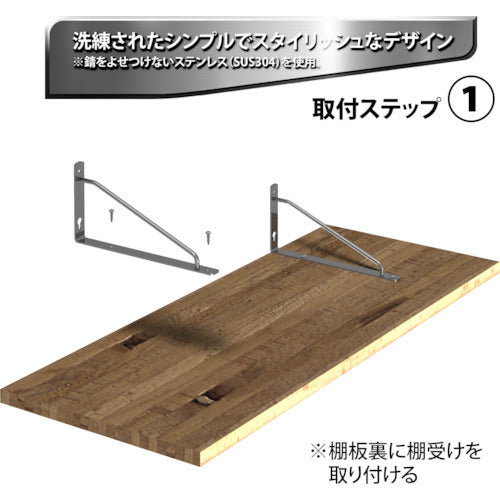

For attaching new shelves to walls and for reinforcement.
For clean spaces such as food factories.

【Specification】
Color: Stainless steel
Width (mm): HD9
Depth (mm): HP9
Height (mm): GZ9
Product name: C9
Plate thickness (mm): 2
H (mm): 60
A (mm) : 13
W (mm): 120
Number of mounting holes: 4
Screw hole diameter (mm): 4 (excluding pothole holes)
Load capacity (N/kgf): 20
Thread size (length) (mm): 3.5 x22 2 pieces
Screw size (short) (mm): 3.1x13 2 pieces
Surface finish: Polished
Applicable board part number: - Width W (mm): -

【Specification2】
－

【Material/Finish】
Body: Stainless steel (SUS304)

【Set contents/accessories】
Mounting screws

【caution】
Load capacity is a value based on the assumption that the mounting base is sufficiently hard.
Do not apply a load that exceeds the load capacity.
