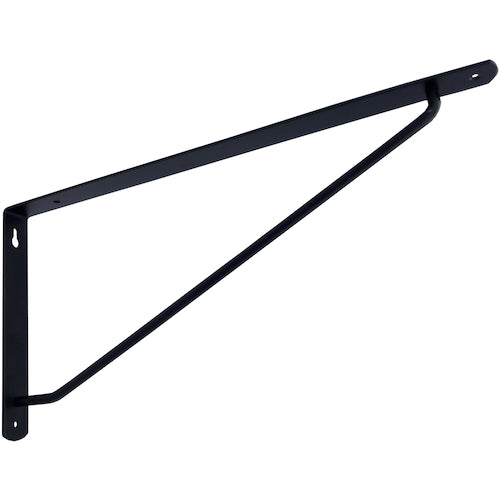

Colour Arm Bracket AA-B300 K.G.Y

【Features】
The use of "daruma hole" type screw holes makes it easy to install screws in places where it would be difficult to install, such as in narrow spaces or high places.

【Use】

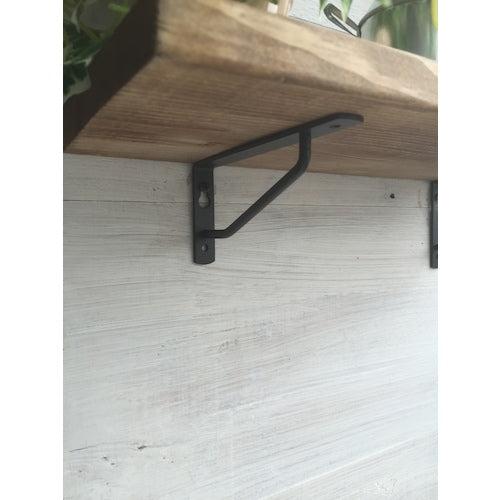

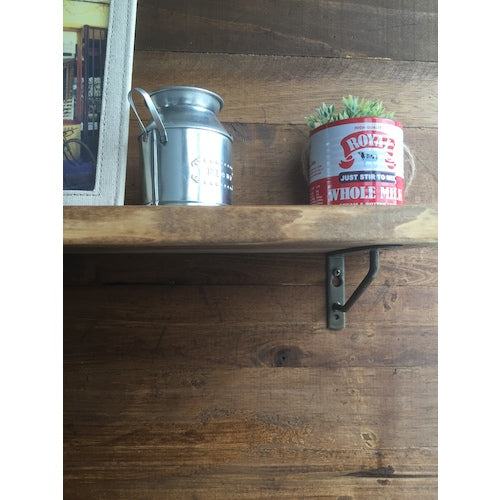

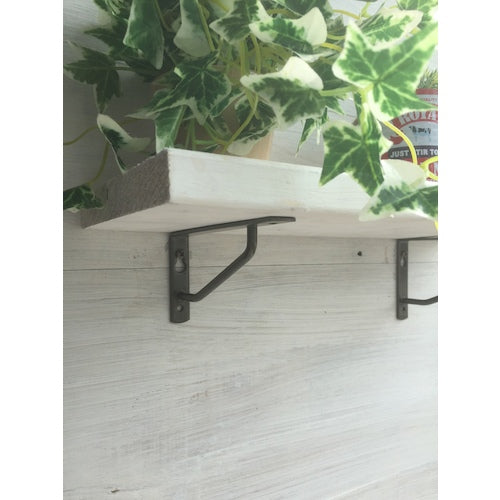

For attaching new shelves to walls and for reinforcement.

【Specification】
Color: Satin black
Width (mm): HD23
Depth (mm): HP23
Height (mm): GZ23
Product name: C23
Plate thickness (mm): 2
H (mm): 150
A(mm) ): 20
W (mm): 300
Number of mounting holes: 4
Screw hole diameter (mm): 4 (excluding potbellied holes)
Load capacity (N/kgf): 15
Thread size (length) (mm): 3.5x22 2 pieces
Screw size (short) (mm): 3.0x14 2 pieces
Surface finish: Powder coating
Applicable board part number: -
Width W (mm): -

【Specification2】
－

【Material/Finish】
Body: Steel

【Set contents/accessories】
Mounting screws

【caution】
Load capacity is a value based on the assumption that the mounting base is sufficiently hard.
Do not apply a load that exceeds the load capacity.
