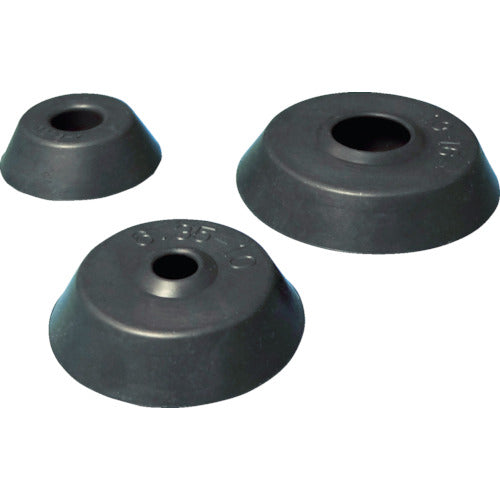

ARAM Bushing 7043-03 ARAM

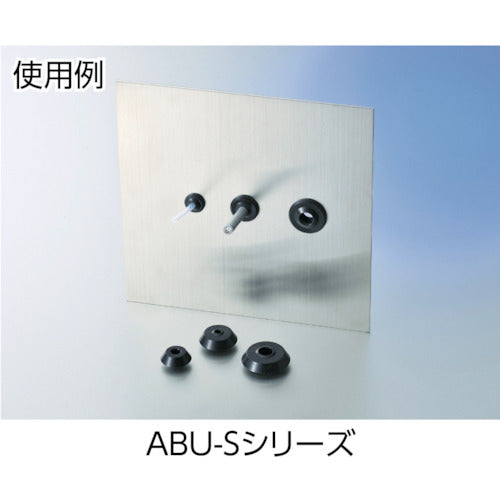

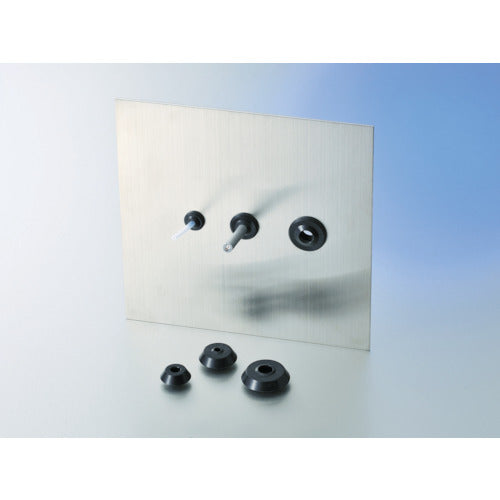

Excellent in water resistance and dust resistance.Since the inside is a cavity, they have a heat insulation effect.(except for ABU-01S)Since it can be attached easily just by pushing, work efficiency is improved.Only cables and hard piping in a prescribed size with a round-shaped cross section can have the bushing effect.As protection material for cables and wiring.Applicable cable diameter(mm):13.00 to 16.00Partition wall hole diameter(mm):27Applicable thickness of partition wall(mm):1.5 to 3.0Outer diameter dimension(mm):37.5IP test result: Protection grade IPX5(test method: JIS standard C0920:2003)IP test result: Protection grade IPX6(test method: JIS standard C0920:2003)Silicone Rubber
