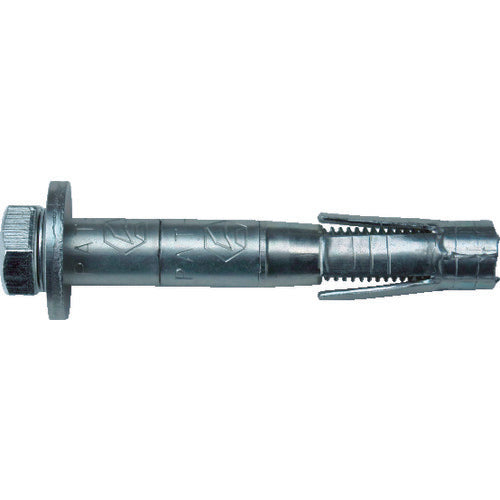

Torque Control Anchor Hijikata Bolt AHB-1065-H TAISEI KOUGYOU

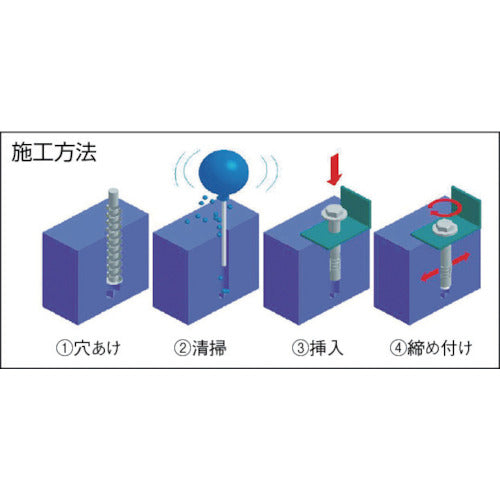

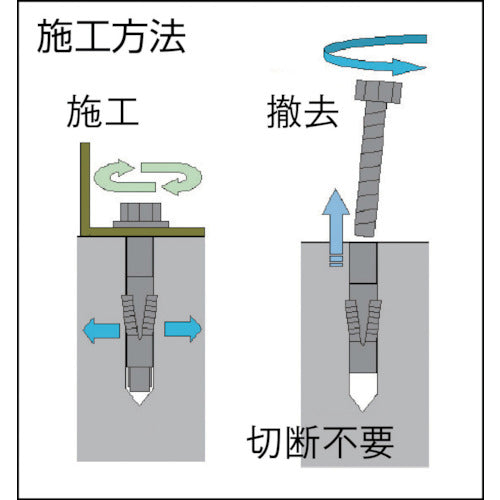

Collapse of the dome washer lets you noticed the construction completion at a glance.Construction does not require hammering. Just insert into the pilot hole and turn.Cutting is not required for removal. Just turn to remove the bolt.For concrete.Nominal Designation of Thread:M8Outer Diameter (mm):10Length (mm):65Pilot Hole Diameter (mm):10.5Maximum Tensile Load (kN):12.4Tightening Torque (n\m):25Packaged in a boxSteelSurface treatment: Trivalent chromate finishingThe maximum tensile load is the value at the concrete strength Fc30N/[[MM2]].
