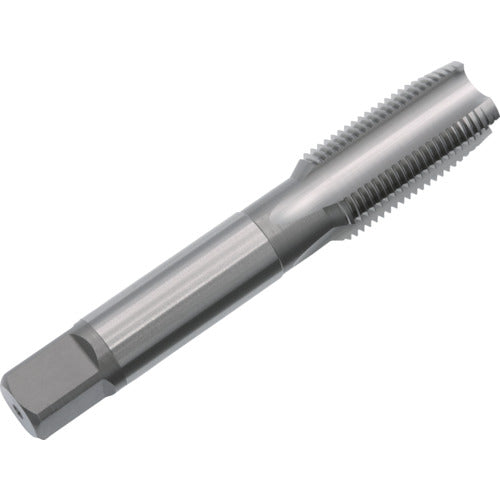

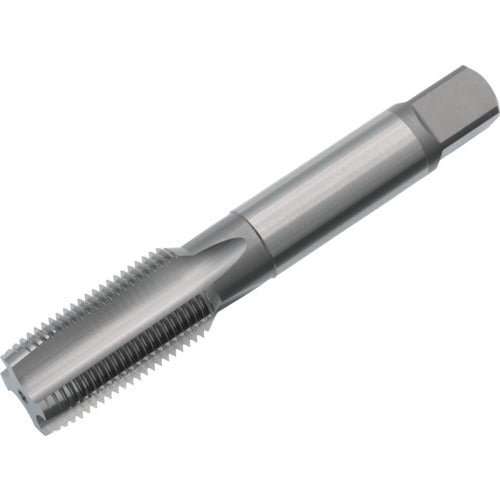

Hand Tap for Helical Coil Wire Screw Thread Insert TW010M1LEB5 YAMAWA

【Features】
For parts made of relatively soft materials such as aluminum, we process a female thread for inserting an insert coil in order to strengthen the female thread and increase durability.
There are two types of chamfers: 1.5P blind hole and 5P through hole.

【Use】
Work material: For aluminum rolled materials, aluminum alloy castings, zinc alloy castings.

【Specification】
Tip: Medium
Accuracy: 1b
Accuracy notation: 1b
Nominal size: M10
Pitch (mm): 1
Thread length (mm): 26
Total length (mm): 82
Shank diameter (mm): 8.5
Shank square part (mm): 6.5
Pilot hole diameter (mm): 10.38
Number of threads: -
Surface treatment: Non-coating

【Specification2】
Processing screw: Metric thread
Number of chamfered threads: 5
Surface treatment: Non-coating
Shank length (mm): 42
Length of square section of shank (mm): 9
Number of grooves: 4
Outside diameter standard Dimensions (mm): 11.299

【Material/Finish】
High speed tool steel (HSS)

【Set contents/accessories】
－

【caution】
－
