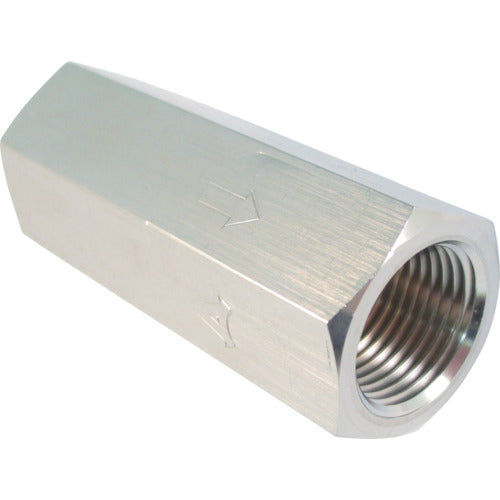

Acheck AS-1022R ASOH

Because the check valve body is a dual screw type, space for piping can be saved.There is no leaking in relation to the check pressure because it is of a simple poppet structure.Piping can be connected regardless of whether it is vertical or lateral.Effective Area ([[MM2]]):8.2Fixed throttle diameter(mm):4.2Connection Port Diameter:Rc1/4Length between opposite sides of hexagon(mm):17Total Length (mm):45Working fluid: Air, waterWorking temperature: 0 to 100CMax working pressure: 2.0MPaCracking pressure: 0.007MPaO-ring: Fluorine rubberMain body: Brass(C3604BD, cd75PPM or less) + nickel plating
