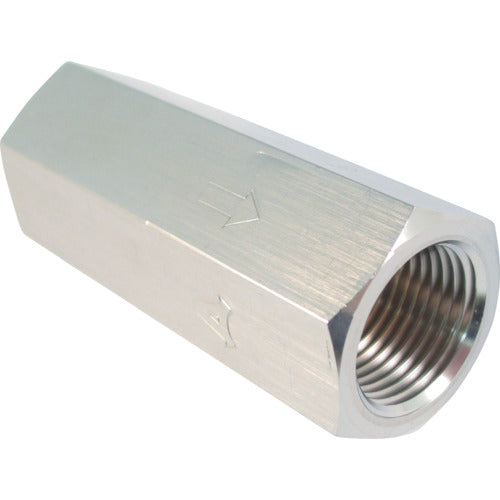

Acheck AS-1033R ASOH

Because the check valve body is a dual screw type, space for piping can be saved.There is no leaking in relation to the check pressure because it is of a simple poppet structure.Piping can be connected regardless of whether it is vertical or lateral.Effective Area ([[MM2]]):12.4Fixed throttle diameter(mm):6.2Connection Port Diameter:Rc3/8Length between opposite sides of hexagon(mm):21Total Length (mm):55Working fluid: Air, waterWorking temperature: 0 to 100CMax working pressure: 2.0MPaCracking pressure: 0.007MPaO-ring: Fluorine rubberMain body: Brass(C3604BD, cd75PPM or less) + nickel plating
