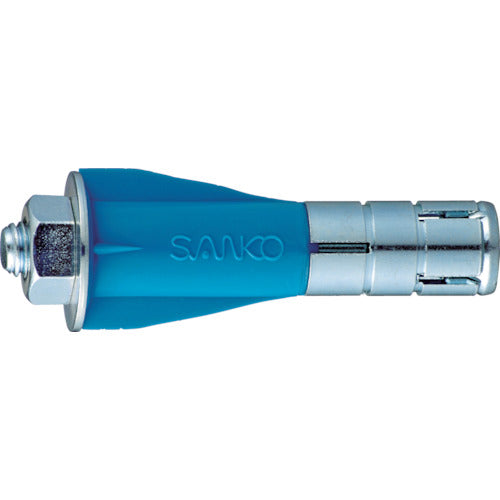

ALC Anchor AX Type AX-875 SANKO

Expansion part opens upward and downward for strong fixation.Tightening work does not damage the ALC panel.Reliable construction management is possible when rotated 10 times.Two wings increase shearing force and prevent co-rotation during construction.For ALC panels.For installation of light fixtures, exhaust ports, window grates, etc.Nominal Designation of Thread:M8Outer Diameter (mm):14.5Total Length (mm):75Max Attachment Thickness (mm):17Punching Depth (mm):70Buried Depth (mm):63Drill Diameter (mm):14.5Maximum Tensile Load (kN):2.7Rotation number:10 timesPackaged in a boxSteel(expansion part)Surface treatment: Trivalent chromate treatmentWith nuts and washersThe maximum tensile load is the data at ALC 100mm thick panel compressive strength Fc4N/[[MM2]].
