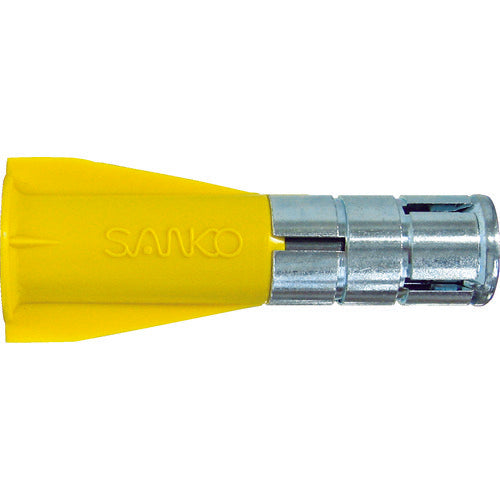

ALC Anchor AX Type AX-W30 SANKO

Expansion part opens upward and downward for strong fixation.Tightening work does not damage the ALC panel.Reliable construction management is possible when rotated 10 times.Two wings increase shearing force and prevent co-rotation during construction.For ALC panels.For installation of light fixtures, exhaust ports, window grates, etc.Nominal Designation of Thread:W3/8Outer Diameter (mm):16.5Total Length (mm):72Punching Depth (mm):80Buried Depth (mm):72Drill Diameter (mm):16.5Maximum Tensile Load (kN):3.6Rotation number:10 timesConstruction bolt length(mm):30 or morePackaged in a boxSteel(expansion part)Surface treatment: Trivalent chromate treatmentThe maximum tensile load is the data at ALC 100mm thick panel compressive strength Fc4N/[[MM2]].
