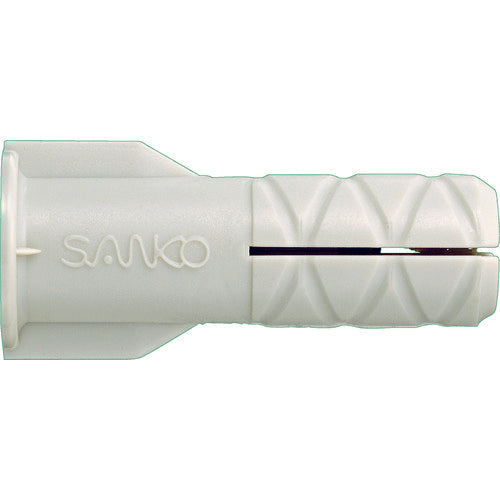

ALC Anchor AZ Type(Female Screw) AZ-3050 SANKO

Evenly fixed on the ALC panel. Excellent tensile strength.Two wings prevent co-rotation.Easy construction only requiring driving with a hammer.For ALC panels.For installation of light fixtures, exhaust ports, window grates, etc.Nominal Designation of Thread:W3/8Outer Diameter (mm):15Total Length (mm):50Thread Length (mm):20Punching Depth (mm):60Buried Depth (mm):50Drill Diameter (mm):14.5Maximum Tensile Load (kN):2.9Packaged in a boxThread length: 20mmNylonThe maximum tensile load is the data at ALC 100mm thick panel compressive strength Fc4N/[[MM2]].
