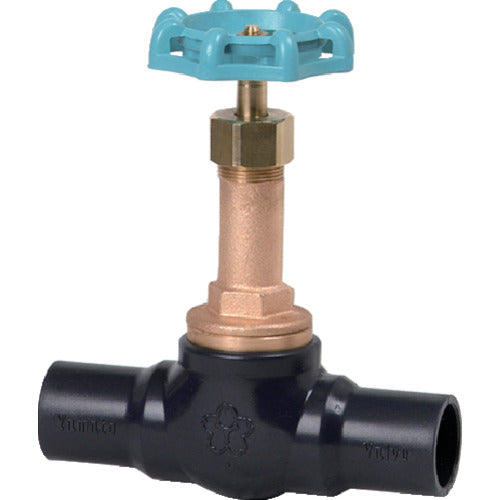

Bronze Gate Valve With PVC Fitting B10EGN 25A YAMATOVALVE

【Features】
Since this is a gate valve with an integrated valve socket, it can be directly connected to hard PVC pipes.
No need for valve socket, seal tape, or adjustable wrench.
No screw-in work required; piping work can be done by simply gluing.

【Use】
Water supply line
Air conditioning/sanitation line
Machine cooling water/circulating water line
Pool water piping line
Agricultural water distribution line

【Specification】

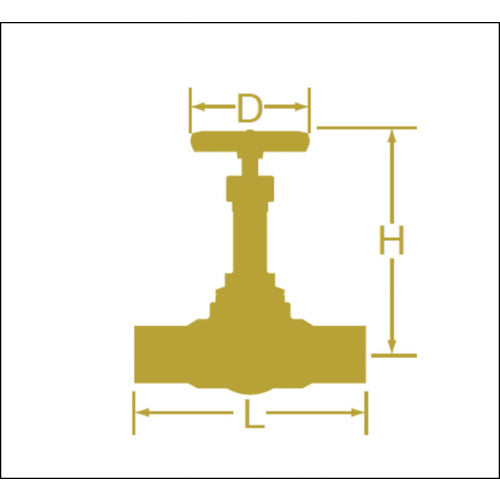

Nominal diameter A: 25
Nominal diameter B: 1
Overall length (mm): 152
Height (mm): 189
Handle diameter D (mm): 80
Maximum allowable pressure (MPa): 1
Operating temperature range ( ℃): 0 to 45
Compatible fluid: tap water, fresh water
PVC pipe nominal diameter: 25
L (mm): 152
H (mm): 189

【Specification2】
Fluid temperature (℃): 0 to 45℃
Maximum working pressure: 1.0MPa
With JWA inspection stamp

【Material/Finish】
Valve body: Bronze (CAC406)
Connection part: PVC (HIPVC)

【Set contents/accessories】
－

【caution】
－
