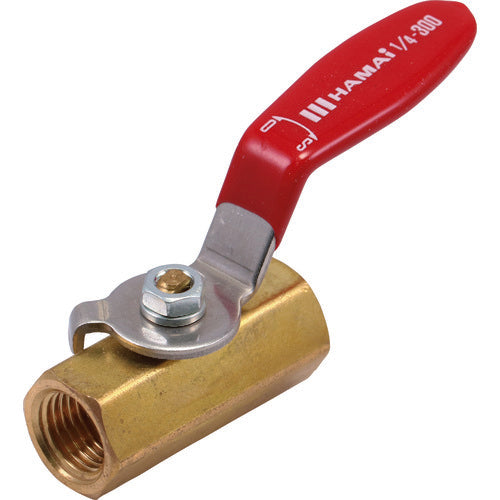

Brass Ball Valve BBS-01-08RC HAMAI

【Features】
This is a reduced bore type made of brass with a one-piece forged body that has high toughness and minimizes leakage.
Equipped with a lever handle that is easy to operate.

【Use】
For water, oil, and gas.

【Specification】
Nominal diameter A: 8
Nominal diameter B: 1/4

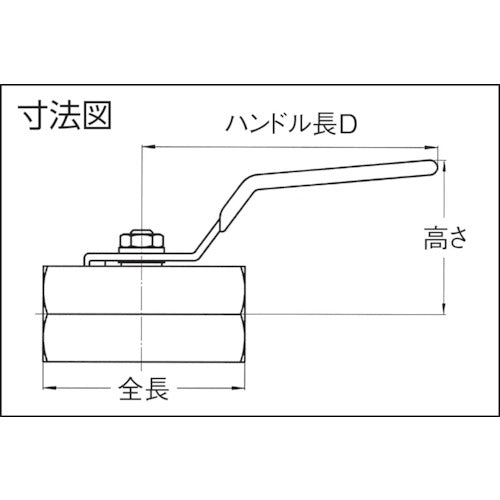

Overall length (mm): 40
Height (mm): 31
Handle length D (mm): 60
Maximum allowable pressure (MPa): 1.96
Operating temperature Range (℃): -10 to 120 (antifreeze)
Compatible fluid: water, oil, gas, etc.
Nominal diameter (mm): 13.8
Face distance (mm): 40
Inner diameter (mm): 5
Connection: RC ×RC

【Specification2】
－

【Material/Finish】
Brass (C3771)
