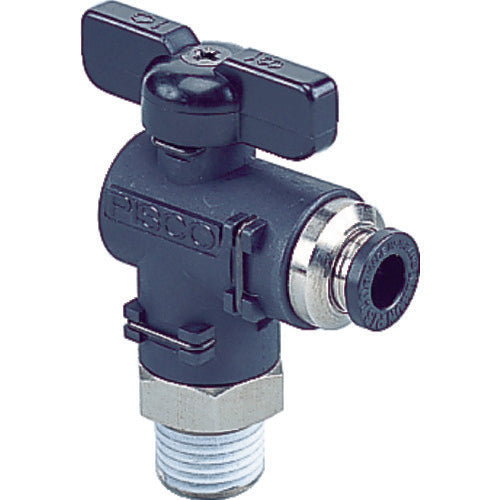

Ball Valve Elbow 20 Series BVLC20-0602 PISCO

Opens and closes the pneumatic input to the equipment.PPS is adopted as the body material. You can also flush the water.Compatible Tube Outer Diameter D (mm):6Connection Port Diameter:R1/4Working fluid: Air, water(conditioned)Working temperature range: 0 to 60C(without freezing)Working pressure: 0.9MPaWorking vacuum pressure: -100kPaMetal parts: Brass + electroless nickel platingResin parts: Polyphenylene sulfide(PPS)Seal rubber: Nitrile rubber(NBR)If you use it under negative pressure, please attach a vacuum filter on the suction side. Dust sucked in might cause malfunction.
