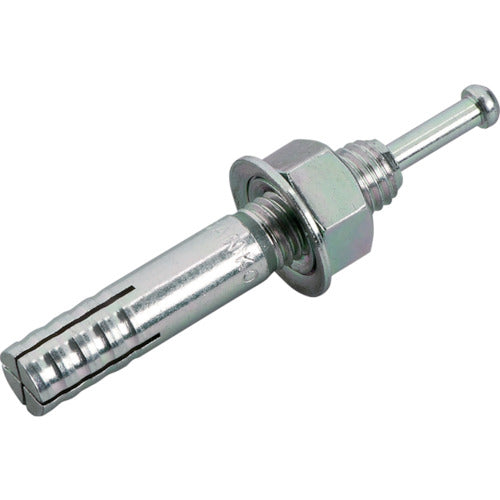

All Anchor C-1210 SANKO

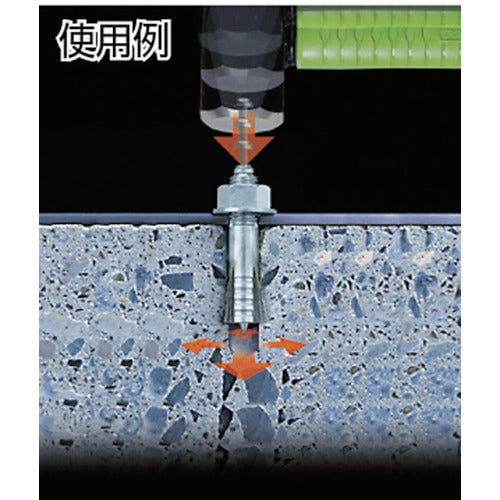

Since the construction will be done only by driving the core bar, you can easily check the completion of construction at glance.Because the main body and threaded portion have the same diameter, drilling to concrete is completed with a small diameter.For construction work, civil engineering work, electrical work, machine equipment construction etc.Nominal Designation of Thread:M12Total Length (mm):100Screw Length (mm):40Max Attachment Thickness (mm):36Pilot Hole Diameter (mm):12.7Maximum Tensile Load (kN):17.1Buried Depth (mm):50SteelSurface treatment: Trivalent chromate treatmentThe maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].
