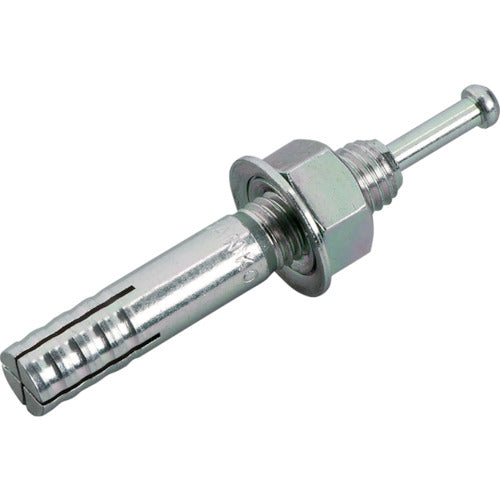

All Anchor C-645 SANKO

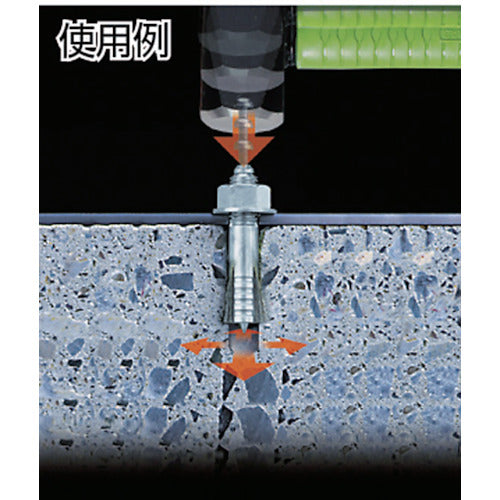

Since the construction will be done only by driving the core bar, you can easily check the completion of construction at glance.Because the main body and threaded portion have the same diameter, drilling to concrete is completed with a small diameter.For construction work, civil engineering work, electrical work, machine equipment construction etc.Nominal Designation of Thread:M6Total Length (mm):45Screw Length (mm):15Max Attachment Thickness (mm):5Pilot Hole Diameter (mm):6.4Maximum Tensile Load (kN):3.9Buried Depth (mm):30SteelSurface treatment: Trivalent chromate treatmentThe maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].
