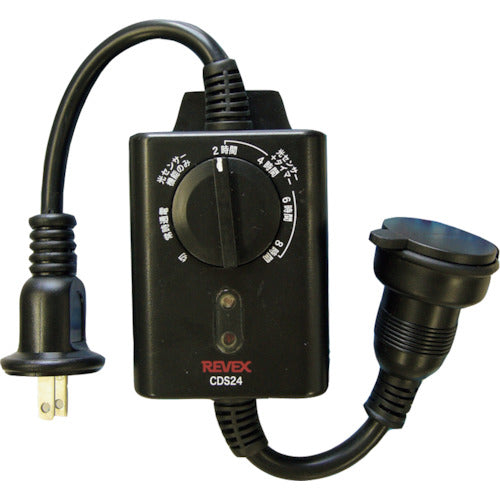

Timer outlet with light sensor CDS24 20611 REVEX

【Features】- Automatically turns on when it gets dark → Automatically turns off when it gets bright or turns off automatically when the set time (2 to 8 hours) comes.

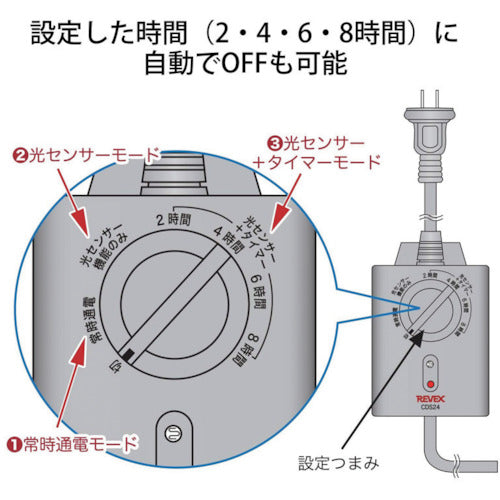

Equipped with 3 convenient operation modes.
Light sensor mode: Turns on when the surroundings are dark and turns off when it is bright.
Always on mode.
Light sensor + timer mode: If you use the knob on the center of the main unit according to 2, 4, 6, or 8 hours, it will turn on when it gets dark and turn off when the specified time comes.

【Use】
For electric pots, electric carpets, heated toilet seats, etc. that use heaters of 1500W or less.
Appliances using transformers 750W or less: TVs, stereos, AV equipment, etc.
Appliances using motors 400W or less: Electric fans, ventilation fans, pumps, etc.
Lighting equipment 750W or less: For fluorescent lights, stands, illuminations, etc.

【Specification】
Maximum timekeeping: 8 hours
Minimum timekeeping (minutes): 120
Width (mm): 70
Depth (mm): 45
Height (mm): 110
Power supply (V): AC100 50/60Hz
Color: Black
Length (mm): 110
Width (mm): 70
Thickness (mm): 45
Power supply: AC100V 50/60Hz

【Specification2】

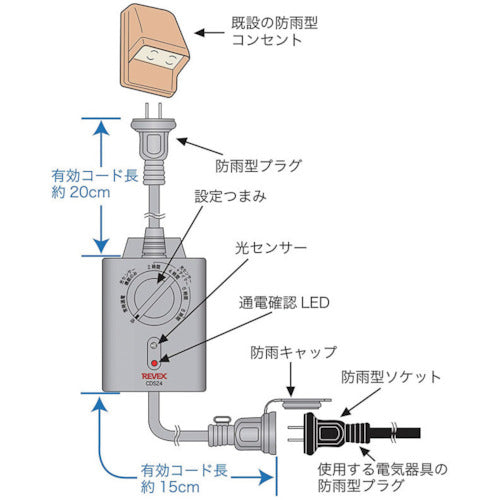

Effective cord length: Input side approx. 20cm, output side approx. 15cm
Power consumption: 1W
Connection capacity: up to 1500W (up to 750W for lighting equipment)
Timer setting time: 2, 4, 6, 8 hours
Light sensor sensitivity :20-30 lux *The "ON/OFF" timing may vary depending on the direction and angle in which the device is installed, the weather, etc.

【Material/Finish】
ABS (acrylonitrile/butadiene/styrene) resin

【Set contents/accessories】
－

【caution】
If the surrounding area becomes bright for more than 5 seconds due to light hitting the light sensor of this unit while the timer is operating, the timer will return to the initial setting and count.
Please note that the light from the lighting equipment you use may turn off the switch.
Also, if dirt adheres to the optical sensor part, it may cause malfunction.
Cannot be used in air conditioners/coolers.
It may not be usable with devices that are operated by remote control, automatically activated by sensors, or devices that have a built-in electronic timer.
Please use LED lighting and metal halide lamps of 250W or less alone.
