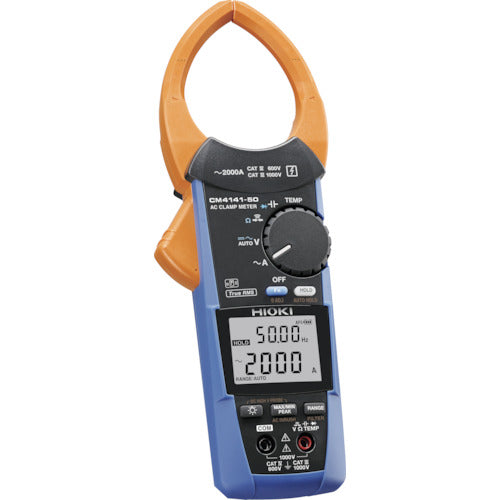

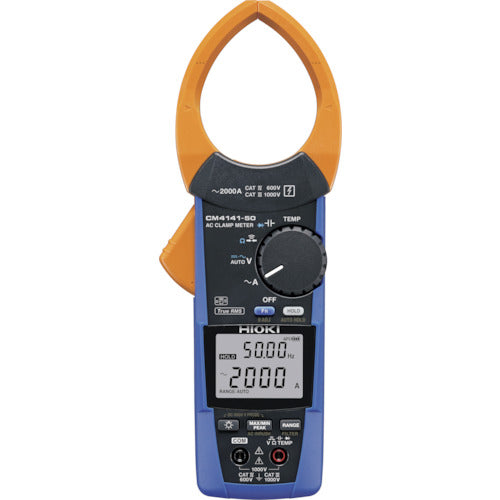

AC CLAMP METER CM4141-50 HIOKI

【Features】

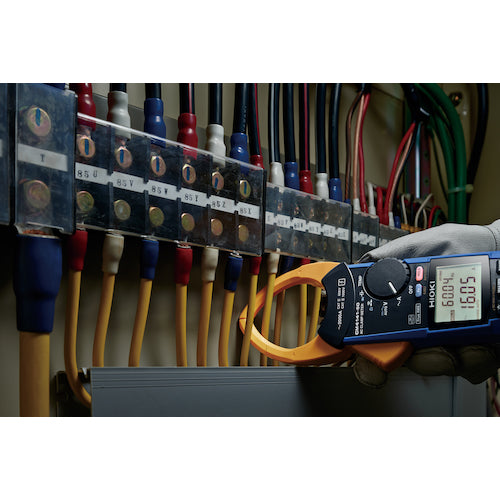

Current sensor that is overwhelmingly easy to clip and can be inserted between narrow cables
Extremely thin sensor with a minimum cross-sectional dimension of 11 mm, designed to be easily inserted into cable gaps
For AC only, can measure up to 2000A
In addition to AC voltage, resistance, etc. Various measurement functions

【Use】

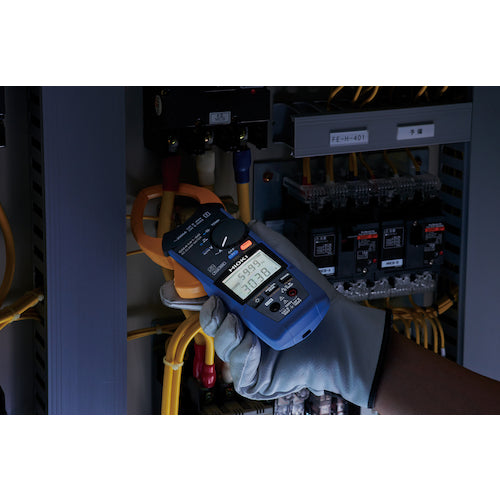

Electrical work, maintenance and maintenance of electrical equipment

【Specification】
AC current (A): 2000
DC voltage (V): 1000
AC voltage (V): 1000
Resistance (Ω): 6M
Width (mm): 65
Depth (mm): 35
Height (mm) ): 247

【Specification2】
[AC current range] 60.00A to 2000A, 3 ranges (45 to 1 kHz, true RMS rectification), basic accuracy 45-66Hz: ±1.5%rdg.±0.08A60 (A range), [Crest factor] 60.00 A range: 2.5 (more than 50.00A and less than 60.00A) - 2000A range: 1.5 (less than 2000A)
[DC voltage range] 600.0mV - 1000V [AC voltage range] 6.000V - 1000V, 4 ranges (15 - 1kHz, true RMS rectification), basic accuracy 45-66Hz: ±0.9%rdg.±0.003V (at6V) [AC + DC voltage range] 6.000V to 1000V, 4 ranges, basic accuracy DC, 45-66Hz: ±1.0%rdg .±0.013V(at6V)
[Resistance range] 600.0Ω to 6.000MΩ, 5 ranges, basic accuracy: ±0.7%rdg.±0.5Ω(at600Ω)
[Capacitance range] 1.000μF to 1000μF, 4 ranges, Basic accuracy: ±1.9%rdg.±0.005μF (at1μF)
[Frequency range] Voltage: 9.999Hz to 999.9Hz, 3 ranges, Current: 99.99Hz, 999.9Hz2 ranges, Basic accuracy: ±0.1%rdg.±0.01Hz (at99.99Hz)
[Temperature (K)] -40.0 to 400.0℃, Accuracy: ±0.5% rdg.±3.0℃ + Temperature probe accuracy addition
[Dust and waterproofness] IP20 (Voltage or (current measurement of dangerous live conductors), IP50 (measuring current of resistance or insulated conductors in completely dry conditions or when storing)
[Other functions] Continuity check, diode check, AC/DC automatic discrimination (voltage only) ), maximum/minimum/average/maximum peak value/minimum peak value display, low-pass filter, display value hold, backlight, auto power save, buzzer sound, zero adjustment, etc. [Power source] AAA alkaline batteries (LR03 ) x 2, approximately 48 hours (Z3210 not installed)
[Measurable conductor diameter] Φ55mm

【Material/Finish】
Resin

【Set contents/accessories】
Test lead L9300 x 1
Carrying case C0203 x 1
AAA alkaline battery (LR03) x 2
Instruction manual x 2
Precautions for use x 1

【caution】
－
