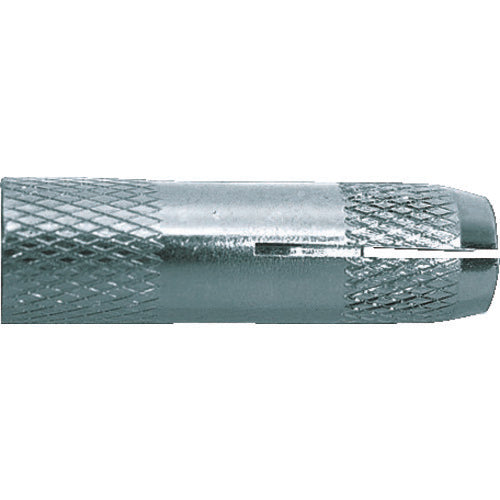

CT Anchor CT-2530 SANKO

Because uniform construction in concrete surface is possible, excellent in aesthetic.Completion of construction can be checked by using special hand holder.Nominal Designation of Thread:W5/16Outer Diameter (mm):10.0Total Length (mm):30Screw Length (mm):12Drill Diameter (mm):10.5Maximum Tensile Load (kN):10.7Packaged in a boxSteelSurface treatment: Trivalent chromate treatmentThe maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].A special hand holder is required for construction.
