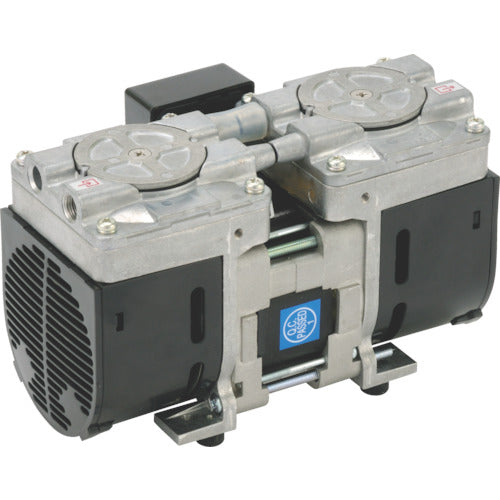

Diaphragm type Dry Vacuum Pump DAP-6D ULVAC

Vacuum pump that perform exhaust ventilation utilizing the reciprocating motion of the rubber thin film(diaphragm).Dry vacuum pump using no oil and water at the gas contact part. Having a built-in thermal protector, safety aspects are also taken into consideration.With a simple structure, maintenance is also easy.Adsorption conveyance, suction fixation, vacuum tweezers.Analytical instrument, physics and chemistry equipment.Semiconductor inspecting equipment.Device assembly.Automatic machines, packaging machines.Displacement Speed (L/min) 50/60Hz:6/7Ultimate Pressure (Pa):6.65 x 10[[UE3]]Inlet Caliber (mm):Rc1/8Power (V):Single Phase 100Total Width x Total Length x Total Height (mm):91.0 x 163.0 x 100.6With thermal protectorDifferent voltages available(negotiable)
