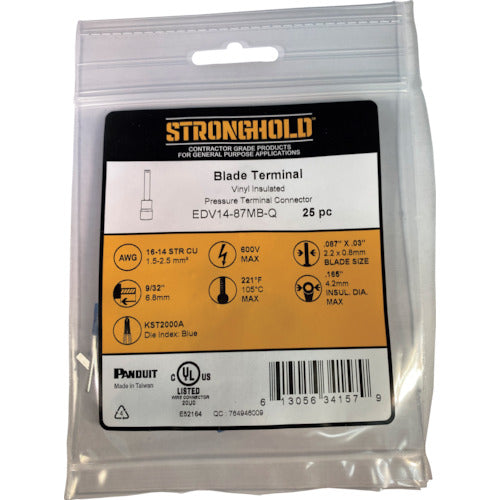

Insulated Vinyl Blade Terminal EDV14-87MB-Q STRONG HOLD

【Features】
The contact surface (tongue) is a rod-shaped blade terminal.
Comes with vinyl insulation coating.

【Use】
For connecting electric wires.

【Specification】
Wire binding range Stranded wire ([[MM2]]): 1.5 to 2.5
Wire binding range AWG: 16 to 14
Color: Blue

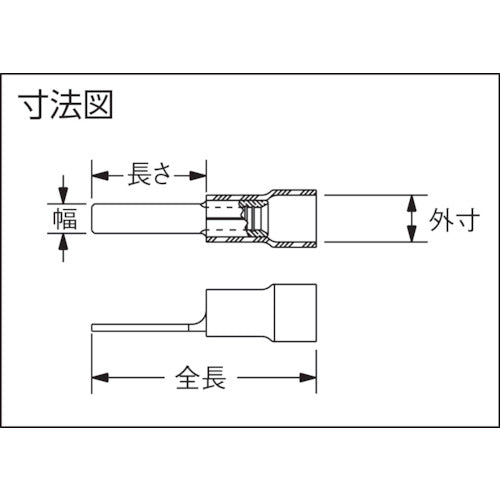

Outer diameter dimension (mm): 4.2
Stud diameter (mm): None
Overall length ( mm): 28.0
Inner dimension (mm): None
Shape: Blade
JIS standard product: None
Maximum operating temperature (℃): 105
Rated voltage (V): 600
Blade size length (mm): 18.0
Blade size width (mm): 2.2
Recommended stripping wire length (mm): 7.1
Recommended stripping wire length (mm): 7.1
Blade size (mm) length: 18.0
Blade size (mm) width: 2.2

【Specification2】
－

【Material/Finish】
Body: Copper
Coating: Vinyl

【Set contents/accessories】
－

【caution】
－
