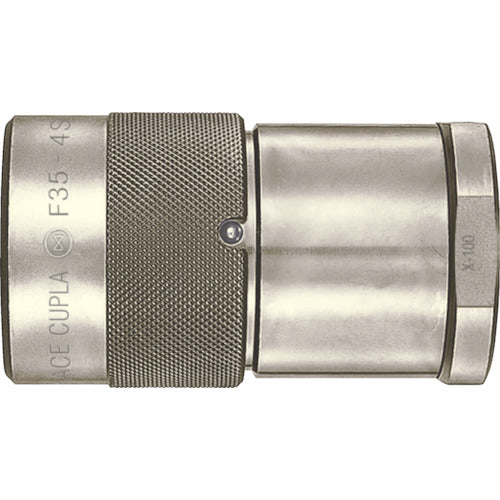

Flat Face CUPLA F35 17911 NITTO

【Features】
Flat connection surface provides dust protection.
The amount of liquid dripping when the coupler is separated is reduced to less than half that of conventional models.

【Use】
－

【Specification】
Proof pressure (MPa): 52.5
Mating side mounting size: R1
Fluid used: Hydraulic oil
Maximum working pressure (MPa): 35.0
Operating temperature range (℃): -20 to 180

【Specification2】

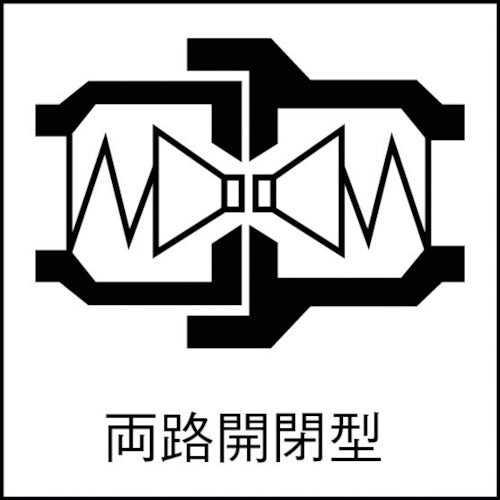

Double-way open/close type

【Material/Finish】
Body: Special steel (nickel plated), Seal rubber: Fluororubber (FKM)

【Set contents/accessories】
－

【caution】
－
