SB type(Blind Flange) FSB505 ESLON
SB type(Blind Flange) FSB505 ESLON
  • Load image into Gallery viewer, SB type(Blind Flange) FSB505 ESLON
  • Load image into Gallery viewer, SB type(Blind Flange) FSB505 ESLON

SB type(Blind Flange) FSB505 ESLON

【order ID】8365588
【basic item number】FSB505
【brand name】ESLON
【minimum order quantity】1Sheet
【packages】1
【manufacturer name】SEKISUI CHEMICAL CO., LTD
【Country of origin】Taiwan
【Weight】259.000G

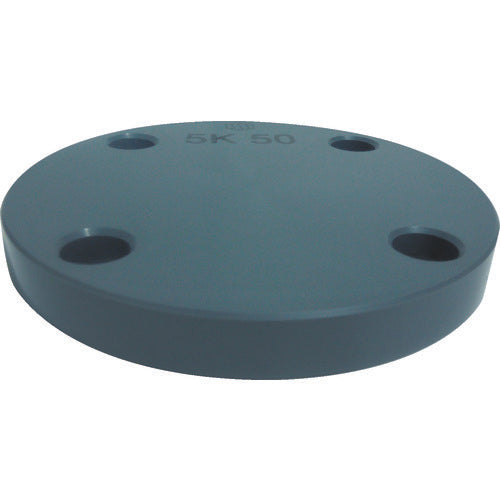

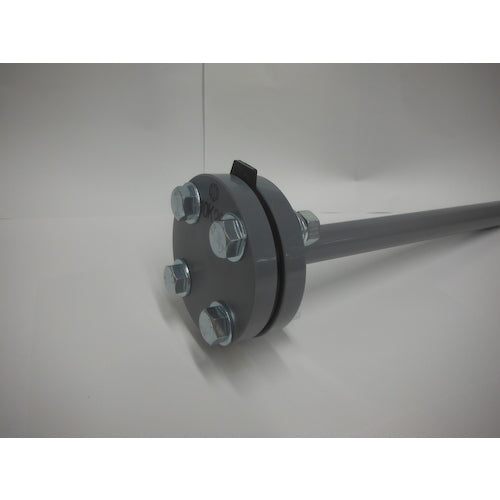

PVC SB flange with excellent corrosion resistance. This flange can be used safely in acidic or alkaline chemical, as well as sea water without corroding.For various pipings such as chemical plants chemical piping, semiconductor factory pure water piping, fishery factory seawater piping and food factory waste water treatment line.Nominal Diameter (A):50Nominal Diameter (B):2Outer Diameter (mm):130Thickness (mm):14Center diameter(mm):105Number:4Bolt hole Diameter (mm):15Max Working Temperature: 60CMax allowable pressure: 0.5MPa(20)Hard Polyvinyl Chloride (PVC)

¥1,640
¥1,640
