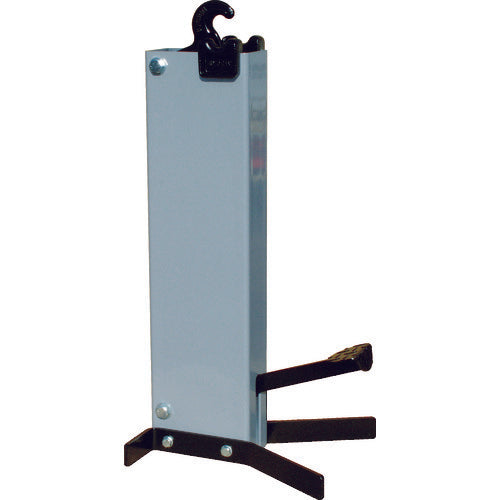

Wire Rope Straightening Machine(Foot type) GU SYORIN

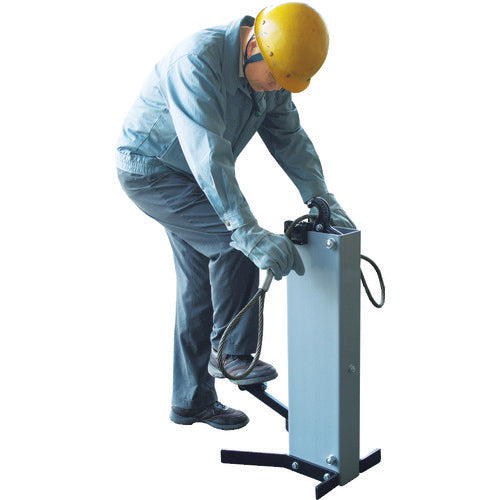

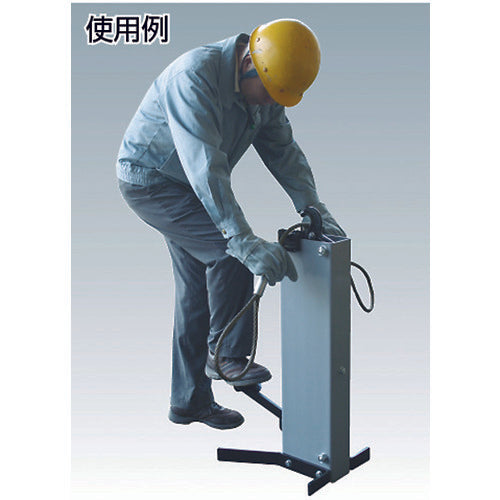

Can perform Straightening of the slinging wire and check the safety.Wire operation can be done with both hands.Make the nature of the wire rope in a mountain shape and place it on a cradle, and step on the pedal in a valley shape to straighten (reform) it.Do the fixing of large and small with adjustment of pedal stepping.When the wire diameter is around 16mm?3, it is effective to widen the spacing of the cradle, and narrow it in the case of around 12mm.All cargo handling sites of general iron work related/forestry related/maritime/land transport/harbor loading/stone/civil engineering related/concrete products/crane car etc.Compatible Wire Diameter (mm):12 to 16H x L x W (mm):850 x 420 x 320Ductile cast iron(FCD450)SS400There are individual differences in the upper limit of the wire diameter that can be straightened, please use around 16mm?3 as a guide.When feeling the pedal depressing lightly or when finding a disconnection of strands, please replace with a new wire rope without hesitation.
