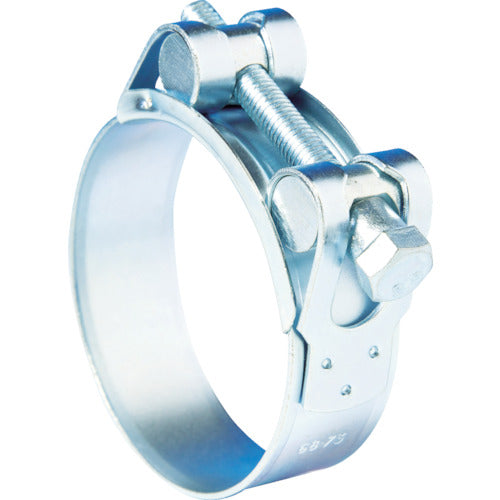

SUPERCLAMPS Mild Steel Zinc Plated JSC022MS Jubilee

Even though the size is equivalent to that of the standard type, it realizes tightening with high torque.The surface is treated with zinc coating and it is excellent in corrosion resistance.General industries, automobile-related industries, and agriculture.For fastening of pneumatic/hydraulic piping and construction equipment, etc.Max Diameter (mm):22Min Diameter (mm):20Thickness (mm):0.6Tightening Torque (n\m):6Band width: 18mmHexagon bolt: 8mmDIN3017 standard acquiredSteel(zinc coating treatment)
