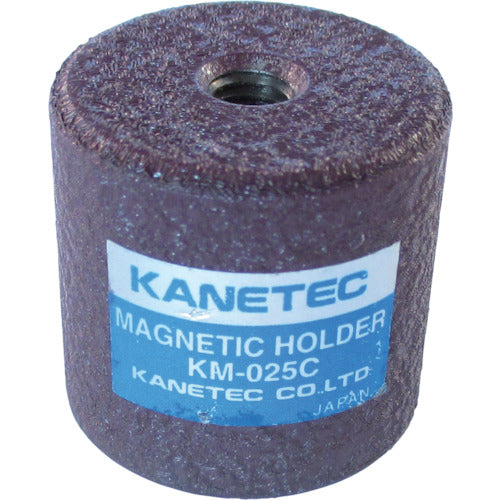

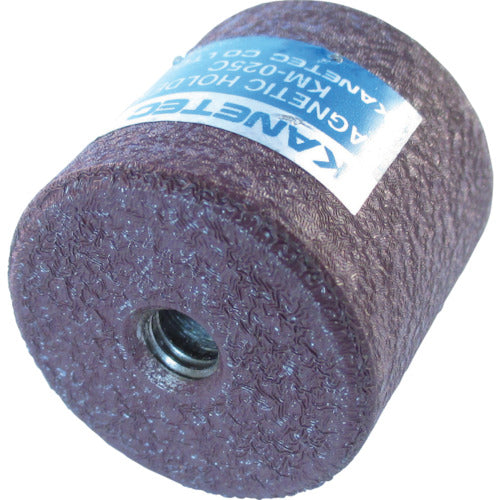

Permanent Magnetic Holder KM-025C KANETEC

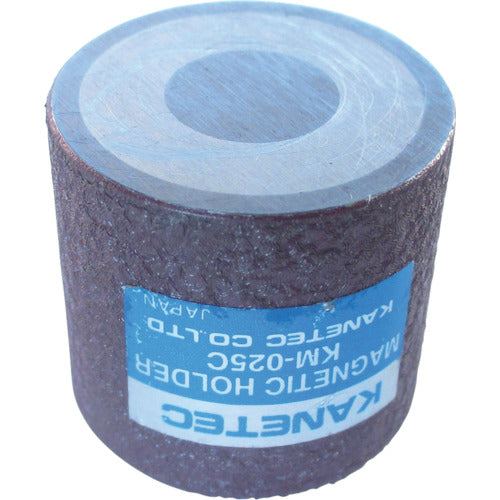

A one-sided adsorption that concentrates the magnetic force on the ring-shaped pattern surface, and it demonstrates a strong magnetic force while it is small.Type with mounting screws (opposite side of adsorption surface) can be widely used by attaching to jig etc.Used by embedding it in die and mold etc.For drawings, rulers, holding down paper forms etc.For holding work during wire cut operation.Adhesion Strength (N):100Outer Diameter x H (mm):26 x 25d (mm):25h (mm):17Mounting Screw:M6 x 1Magnet: Neodymium Magnet
