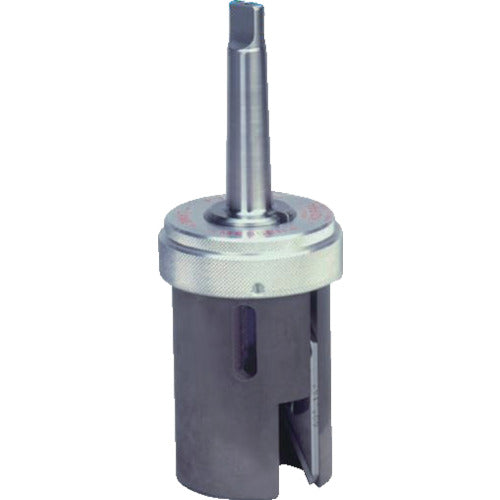

Counter Sink (Outer Device) KP02-050 NOGA

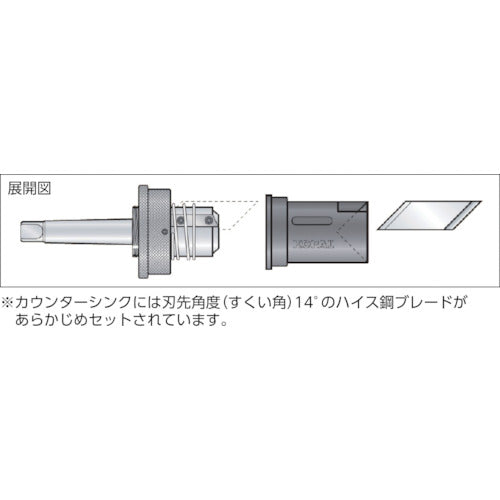

The KOPAL chamfering unit is made up of a combination of the main body, blade, and guide.The cone-shaped guide for which the height can be adjusted with a spring serves the role of centering the workpiece.The high speed steel blade is locked with a nut and the protrusion of the blade can be configured.For chamfering processing of the outer diameter.For chamfering of the end surfaces of a round rod or square bar, etc.Chamfering Diameter(mm):4 to 37A (mm):42B (mm):65C (mm):105Shank Size:MT2Chamfering Angle():60Model Type:2-36Applicable Blade:KP02-315Blade: High Speed Steel
