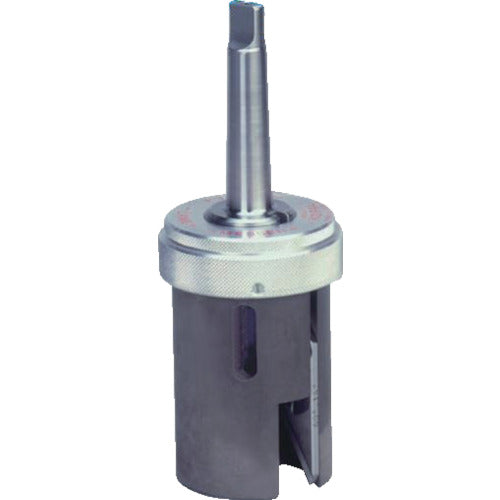

Counter Sink (Outer Device) KP02-166 NOGA

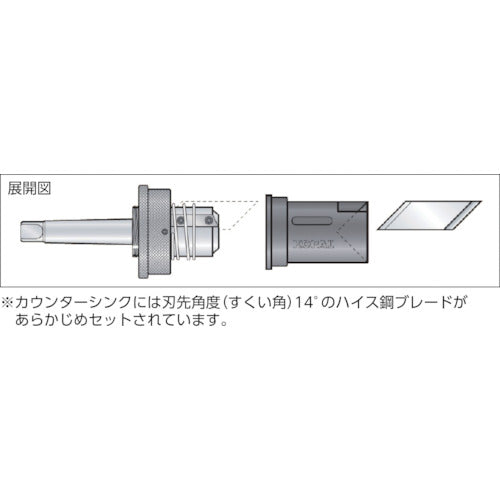

The KOPAL chamfering unit is made up of a combination of the main body, blade, and guide.The cone-shaped guide for which the height can be adjusted with a spring serves the role of centering the workpiece.The high speed steel blade is locked with a nut and the protrusion of the blade can be configured.For chamfering processing of the outer diameter.For chamfering of the end surfaces of a round rod or square bar, etc.Chamfering Diameter(mm):60 to 97A (mm):100B (mm):110C (mm):107Shank Size:MT3Chamfering Angle():90Model Type:60-100Applicable Blade:KP02-310Blade: High Speed Steel
