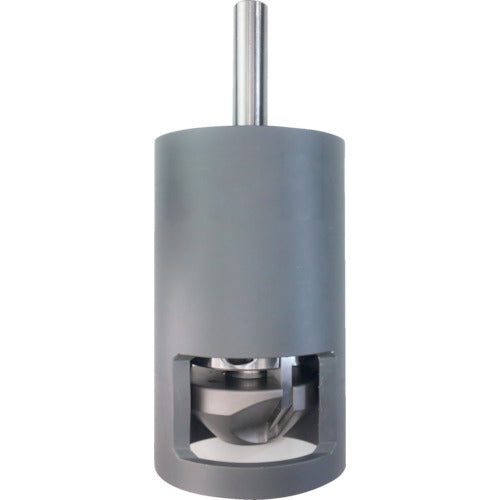

Counter Sink (Device for Tube) KP04-080 NOGA

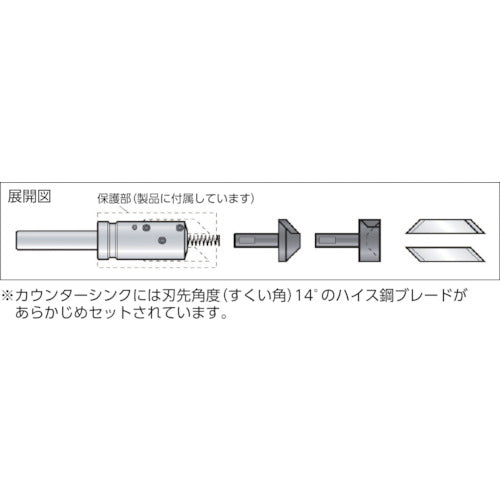

Chamfering of the inner side and outer side of a pipe can be done at the same time and each can be separately configured.The KOPAL chamfering unit is made up of a combination of the main body, blade, and guide.The cone-shaped guide for which the height can be adjusted with a spring serves the role of centering the workpiece.The high speed steel blade is locked with a nut and the protrusion of the blade can be configured.For chamfering processing of the inner and outer diameters.Simultaneous chamfering of the inner side and outer side of a pipe.Inner Diameter:15 to 27Chamfering Diameter(mm) Outer Diameter:18 to 30A (mm):58B (mm):105Shank Size:Straight ?O12.7Chamfering Angle():90Model Type:K2Applicable Blade:KP04-320/330Blade: High Speed Steel
