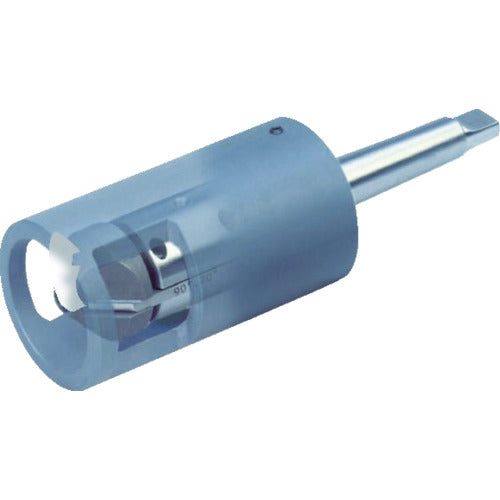

Counter Sink (Device for Tube) KP04-090 NOGA

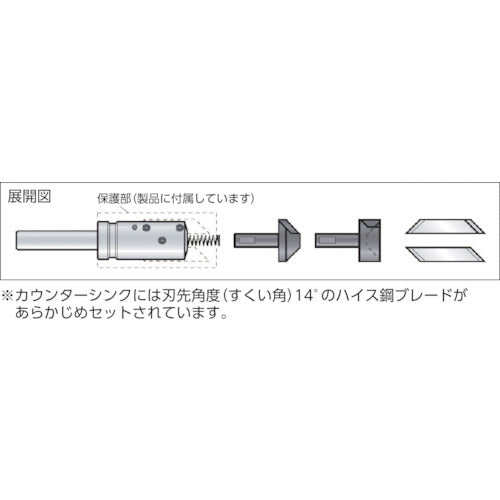

Chamfering of the inner side and outer side of a pipe can be done at the same time and each can be separately configured.The KOPAL chamfering unit is made up of a combination of the main body, blade, and guide.The cone-shaped guide for which the height can be adjusted with a spring serves the role of centering the workpiece.The high speed steel blade is locked with a nut and the protrusion of the blade can be configured.For chamfering processing of the inner and outer diameters.Simultaneous chamfering of the inner side and outer side of a pipe.Inner Diameter:20 to 30Chamfering Diameter(mm) Outer Diameter:24 to 36A (mm):61B (mm):110Shank Size:MT2.0Chamfering Angle():90Model Type:K3Applicable Blade:KP04-320/330Blade: High Speed Steel
