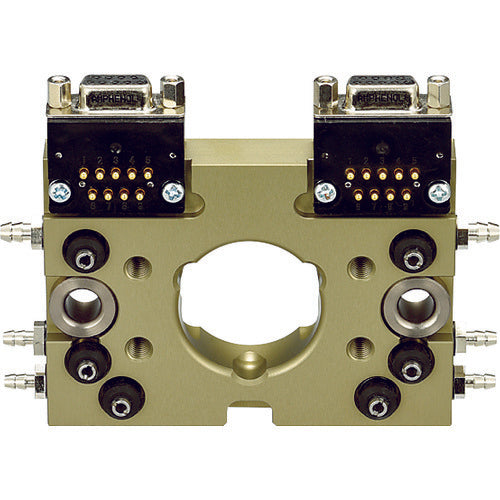

Tool Changer OX-SBI eins

Equipped with an original separation mechanism.(pattent No.4126074)The dropout prevention mechanism is built in.The air check valve is built in.The air option can be added.Mounting position:Tool sideTransportable weight(kg):to 10Target molding machine(ton):80 to 650Pulling force/pushing force(N):315/912Electrical contacts: 9 cores x 2 2A 24VDC MAXConnector forming: D-SUB connector, probe connectorPipe connection: 6 ports(M5)Made of super duralumin
