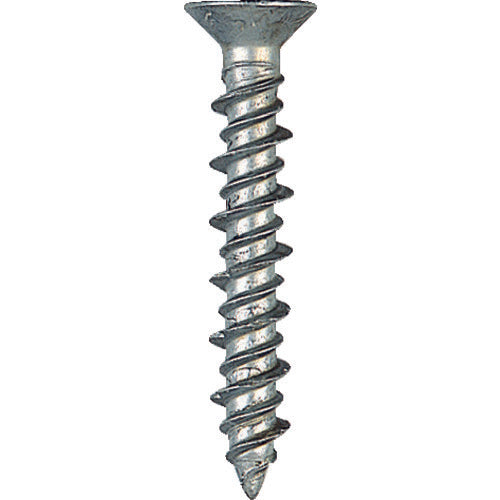

Plug-less Anchor PF-432SBT TRUSCO

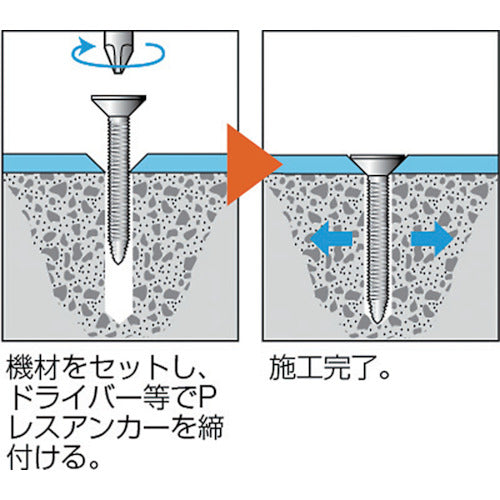

Since the plug is unnecessary, the pilot hole diameter can be small.Securely fasten to the mating material with high sharp ridge and low ridge mechanism.For concrete, blocks and wood.Saddle fastening for wiring and piping etc.Nominal Diameter d (mm):4Pilot Hole Diameter (mm):3.4Buried Depth (mm):30Maximum Tensile Load (kN):2.8Punching Depth (mm):42Length (mm):32Stainless Steel (SUS410)The maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].
