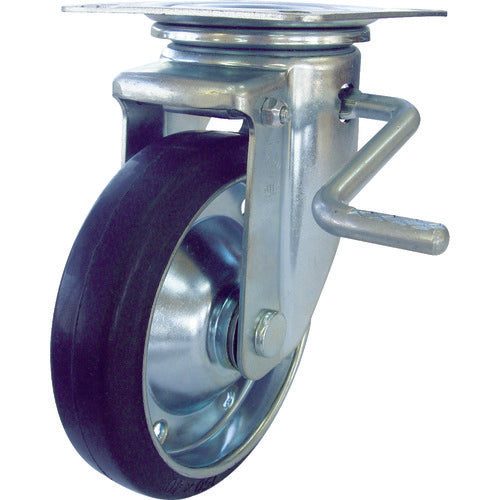

Press Rubber Caster(PM Series) PMS-130WBLB(R) YUEI

Original design, more than 3 times of the mileage of Yuei general caster was achieved.Running cost is significantly reduced by reduction of changing frequency.(daN):180Allowable Weight (kgf):183.6Wheel Diameter D (mm):130Wheel Width (mm):40Mounting Height H (mm):177Mounting Plate A x B (mm):110 x 110Mounting Pitch X x Y (mm):80 to 90 x 80 to 90Mounting Hole Diameter P (mm):11.0Plate TypeWith radial ball bearingFlexible Type (with double stopper)Simultaneously lock the turning part and the wheelMetal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome PlatedWheel: Steel Wheel, Rubber
