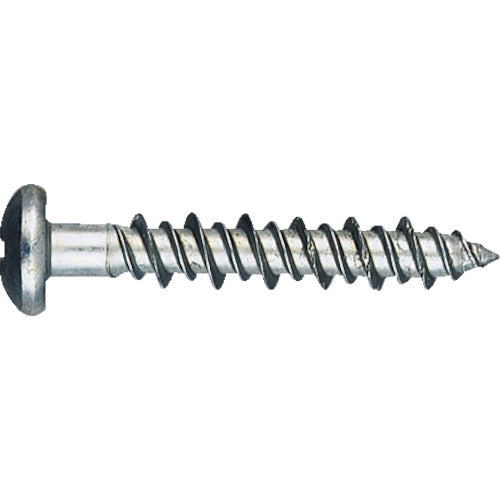

Plug-less Anchor PPV-Type PPV-535 SANKO

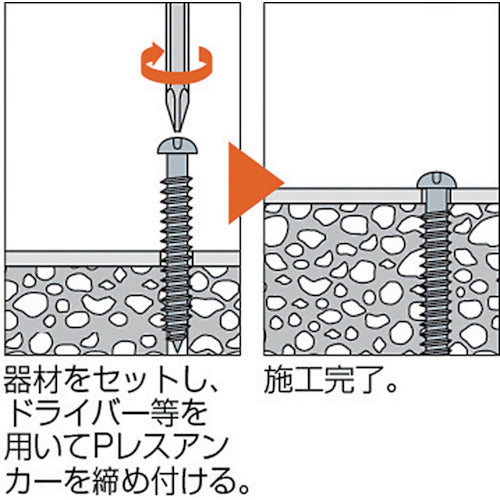

Since the plug is unnecessary, the pilot hole diameter can be small.Securely fasten to the mating material with high sharp ridge and low ridge mechanism.For concrete, blocks and wood.Saddle fastening for wiring and piping. Switch box etc.Nominal Diameter d (mm):5Pilot Hole Diameter (mm):4.3Buried Depth (mm):30Maximum Tensile Load (kN):3.3Punching Depth (mm):45Length (mm):35Compatible screwdriver: Plus No.2SteelSurface treatment: SV(silver big)treatmentThe maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].
