Gears S3BP20B-3014 KG
Gears S3BP20B-3014 KG
  • Load image into Gallery viewer, Gears S3BP20B-3014 KG
  • Load image into Gallery viewer, Gears S3BP20B-3014 KG

Gears S3BP20B-3014 KG

【order ID】1160988
【basic item number】S3BP20B3014
【brand name】KG
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KYOUIKU GEAR MFG CO.,LTD.
【Country of origin】Japan
【Weight】162.300G

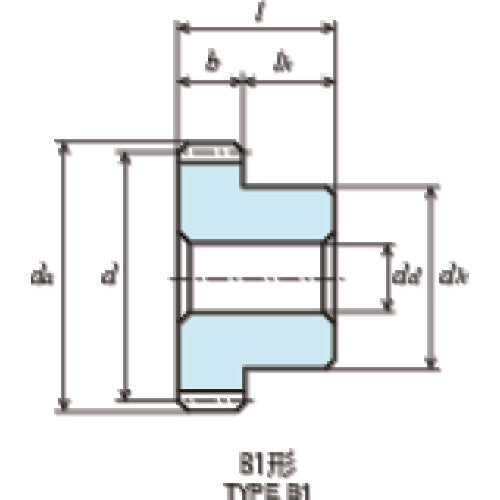

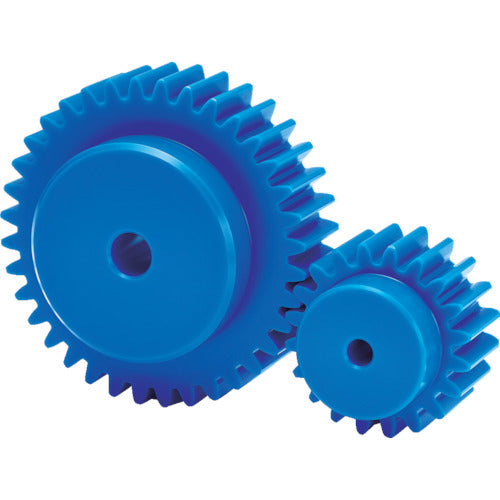

It is food contact, blue POM gear series, and made of blue polyacetal resin.The blue POM not included in the food material colors is optimum for food rapping equipment as countermeasures against contamination by foreign substances.Module:3.0Number of teeth:20Reference diameter d (mm):60.0Addendum circle diameter:phi66.0Hub outer diameter:phi50Tooth width b (mm):30Hole Diameter (mm):14Total Length (mm):50Hub length(mm):20Type:B1Module: 2.0, 2.5, 3.0US/EU market food contact uses/rules compatibleJISB1702-1(ISO) Class 9 to 10Blue polyacetal resin

¥6,220
¥6,220
Sold out
