Gears S50BP15K-0803 KG
Gears S50BP15K-0803 KG
  • Load image into Gallery viewer, Gears S50BP15K-0803 KG
  • Load image into Gallery viewer, Gears S50BP15K-0803 KG

Gears S50BP15K-0803 KG

【order ID】1160831
【basic item number】S50BP15K0803
【brand name】KG
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KYOUIKU GEAR MFG CO.,LTD.
【Country of origin】Japan
【Weight】1.200G

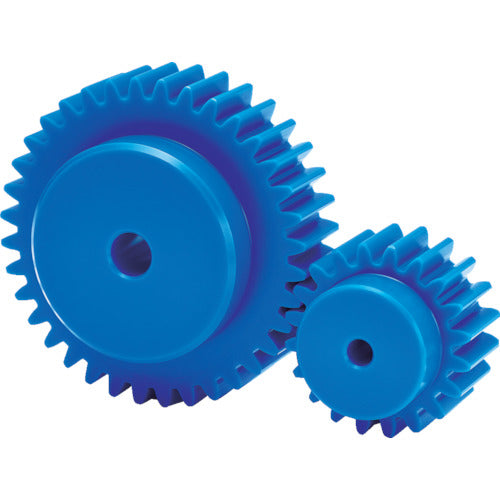

It is food contact, blue POM gear series, and made of blue polyacetal resin.The blue POM not included in the food material colors is optimum for food rapping equipment as countermeasures against contamination by foreign substances.Module:0.5Number of teeth:15Reference diameter d (mm):7.5Addendum circle diameter:phi8.5Hub outer diameter:phi9.0Tooth width b (mm):8Hole Diameter (mm):3Total Length (mm):19Hub length(mm):10Type:K2Module: 0.5 to 0.8US/EU market food contact uses/rules compatibleJISB1702-1(ISO) Class 9 to 10Blue polyacetal resin

¥890
¥890
Sold out
