Gears S80BP15K-0703 KG
Gears S80BP15K-0703 KG
  • Load image into Gallery viewer, Gears S80BP15K-0703 KG
  • Load image into Gallery viewer, Gears S80BP15K-0703 KG

Gears S80BP15K-0703 KG

【order ID】1160854
【basic item number】S80BP15K0703
【brand name】KG
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KYOUIKU GEAR MFG CO.,LTD.
【Country of origin】Japan
【Weight】3.600G

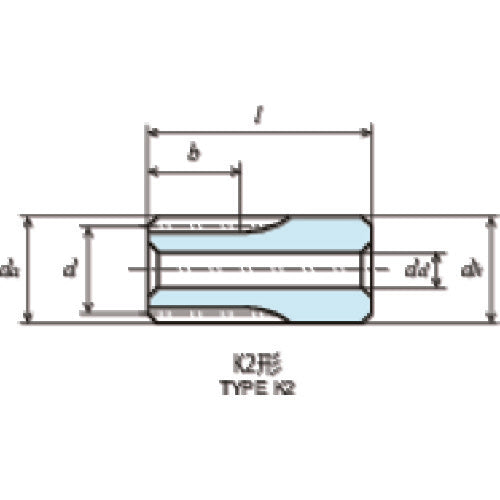

It is food contact, blue POM gear series, and made of blue polyacetal resin.The blue POM not included in the food material colors is optimum for food rapping equipment as countermeasures against contamination by foreign substances.Module:0.8Number of teeth:15Reference diameter d (mm):12.0Addendum circle diameter:phi13.6Hub outer diameter:phi13.6Tooth width b (mm):7Hole Diameter (mm):3Total Length (mm):20Hub length(mm):13Type:K2Module: 0.5 to 0.8US/EU market food contact uses/rules compatibleJISB1702-1(ISO) Class 9 to 10Blue polyacetal resin

¥890
¥890
Sold out
