Gears S80BP28B-0503 KG
Gears S80BP28B-0503 KG
  • Load image into Gallery viewer, Gears S80BP28B-0503 KG
  • Load image into Gallery viewer, Gears S80BP28B-0503 KG

Gears S80BP28B-0503 KG

【order ID】1160861
【basic item number】S80BP28B0503
【brand name】KG
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KYOUIKU GEAR MFG CO.,LTD.
【Country of origin】Japan
【Weight】5.700G

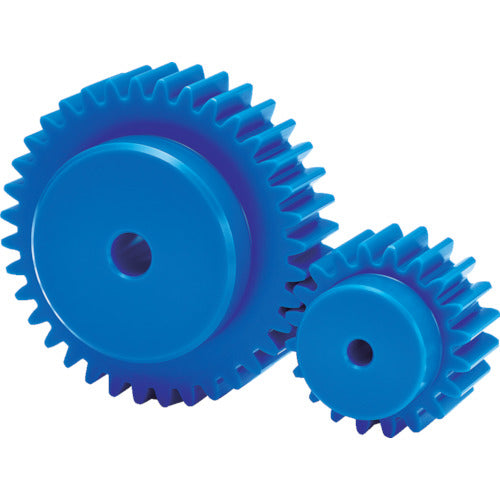

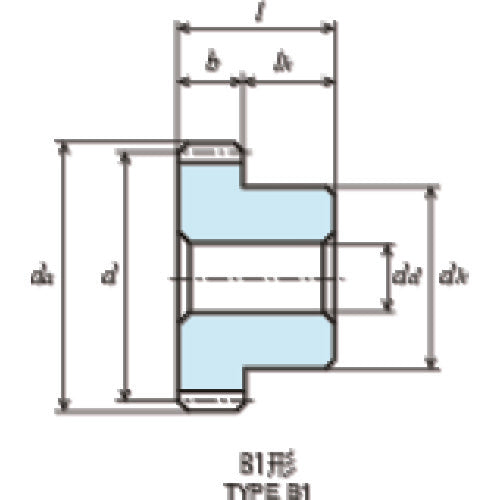

It is food contact, blue POM gear series, and made of blue polyacetal resin.The blue POM not included in the food material colors is optimum for food rapping equipment as countermeasures against contamination by foreign substances.Module:0.8Number of teeth:28Reference diameter d (mm):22.4Addendum circle diameter:phi24.0Hub outer diameter:phi20.0Tooth width b (mm):5Hole Diameter (mm):3Total Length (mm):12Hub length(mm):7Type:B1Module: 0.5 to 0.8US/EU market food contact uses/rules compatibleJISB1702-1(ISO) Class 9 to 10Blue polyacetal resin

¥1,160
¥1,160
Sold out
