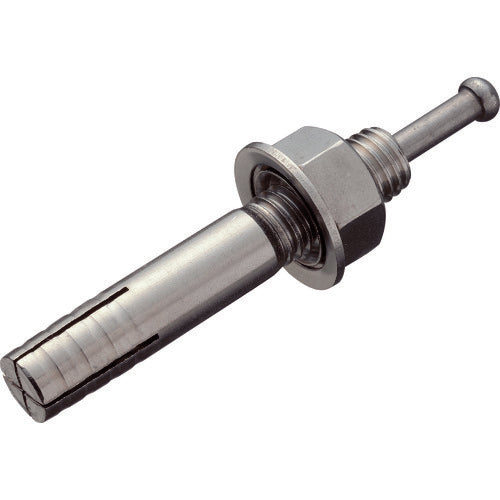

All Anchor SC-1280BT TRUSCO

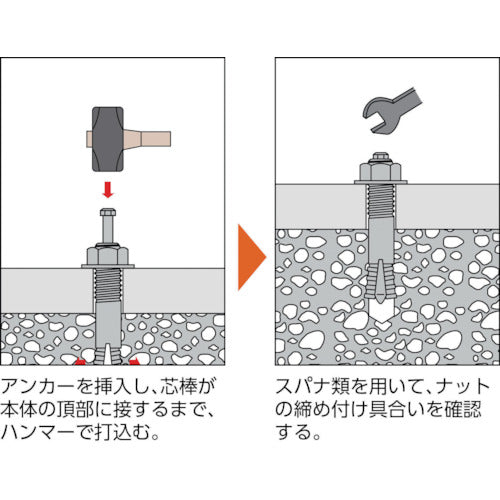

Since the construction will be done only by driving the core bar, you can easily check the completion of construction at glance.Because the main body and threaded portion have the same diameter, drilling to concrete is completed with a small diameter.For construction work, civil engineering work, electrical work, machine equipment construction etc.Nominal Designation of Thread:M12Total Length (mm):80Screw Length (mm):25Max Attachment Thickness (mm):16Pilot Hole Diameter (mm):12.7Maximum Tensile Load (kN):17.1Buried Depth (mm):50Packaged in a pack(up to a total length of 80mm)Packaged in a bag(from a total length of 90mm)Stainless Steel (SUS304 type)The maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].
